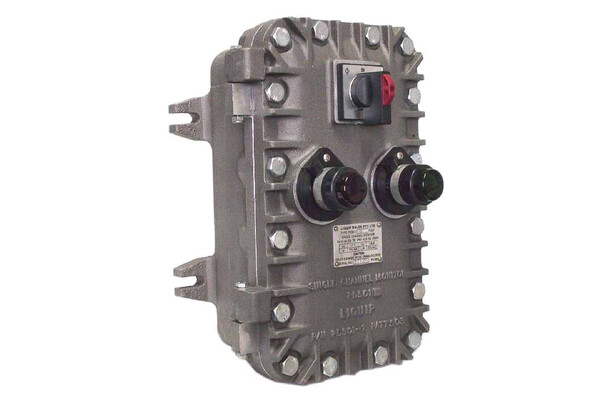

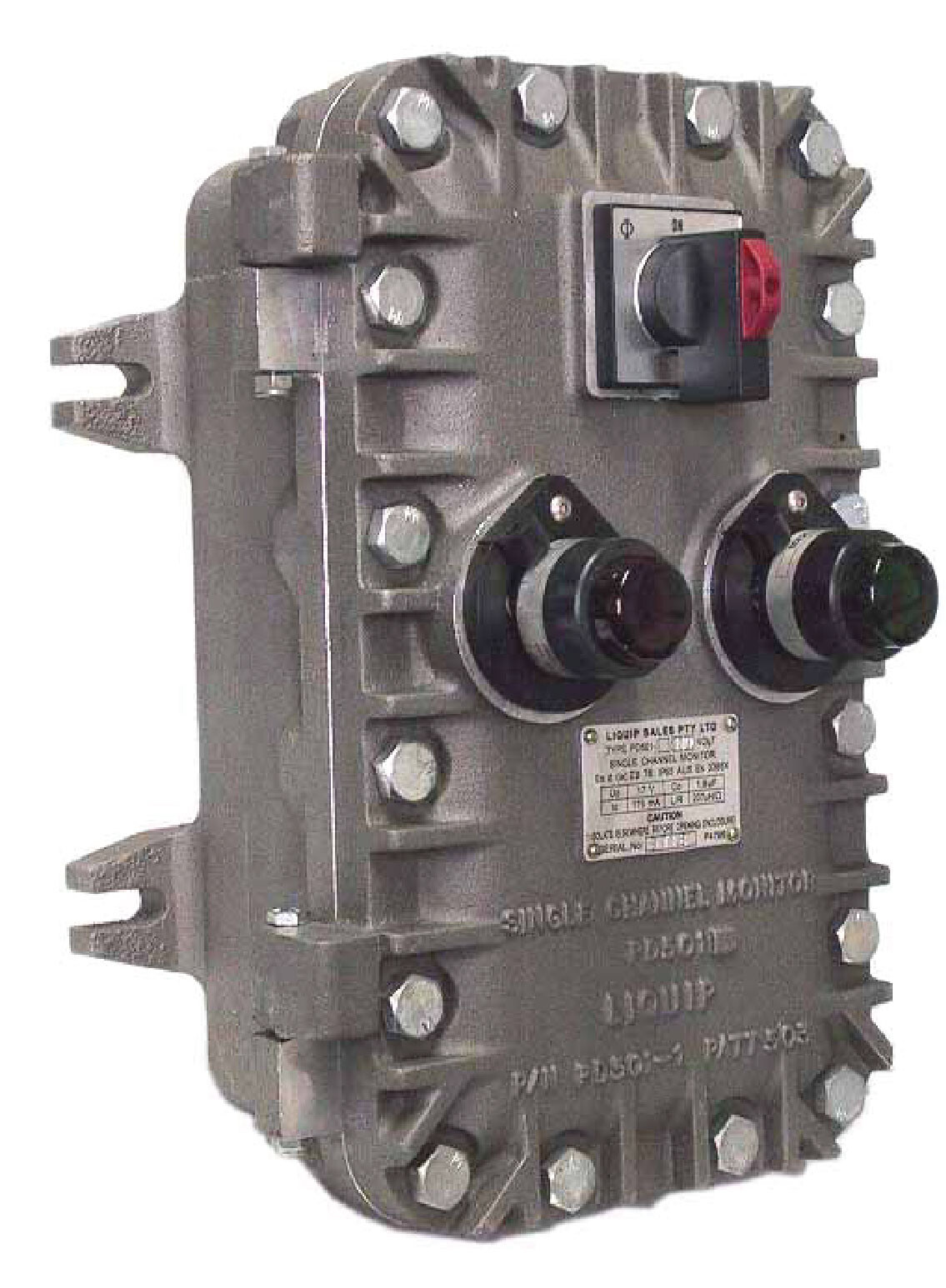

Single Channel Overfill Protection Monitor - ATEX/UKEX Applications only

The PD501 monitor provides overfill protection combined with ground assurance.

The PD501 is a multi-purpose monitor for use in ATEX and UKEX applications only.

Features & Benefits
  • Explosion proof housing.
  • Incorporates a single channel for 2-wire probes for railcar filling or other 2 wire applications.
  • Monitors up to 15 x 5-wire probes for overfill protection.
  • Ground assurance via diode or no diode.
  • ATEX and UKEX approvals.
  • Cost effective overfill protection & ground assurance.
Technical Information

Electrical Parameters
ATEX & UKEX Approvals
Uo = 17V
Co = 1.8μF
Io = 179mA
Lo/Ro = 200 μH/ Ω.

Operating Temperature
-20ºC to +40ºC.

IP Rating
IP54.

Safety Approvals (ATEX)
ATEX Certificate: TRL03ATEX11007X.
Marking:  CE 2813 EX II 2 [1] G EEx d [ia] IIB T6

Safety Approvals (UKEX)
UKEX Certificate: EMA21UKEX0035X
Marking: UKCA 0518 EX II 2 [1] G Ex db [ia Ga] IIB T6 Gb

Housing
Explosion proof housing for Zone 1, monitoring signals intrinsically safe Zone 0.

Power supply
240VAC or 110VAC (upon request).

Weight
8kg.

Ordering Information

Common Configurations

PD501-240-FC: 240V Single channel monitor - 5 wire overfill and ground monitor (ATEX/UKEX only).

PD501-240-GC: 240V Single channel monitor - Ground monitor (ATEX/UKEX only).

For all other configurations, order as:

PD501-240: 240V single channel monitor - (ATEX/UKEX only).
when ordering PD501-240 please specify required configuration such as type of probe and type of grounding required.
