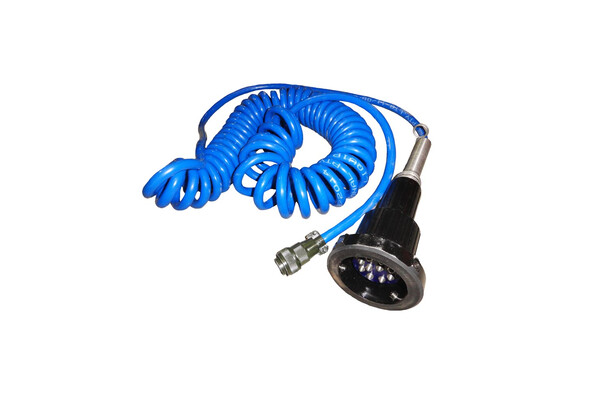

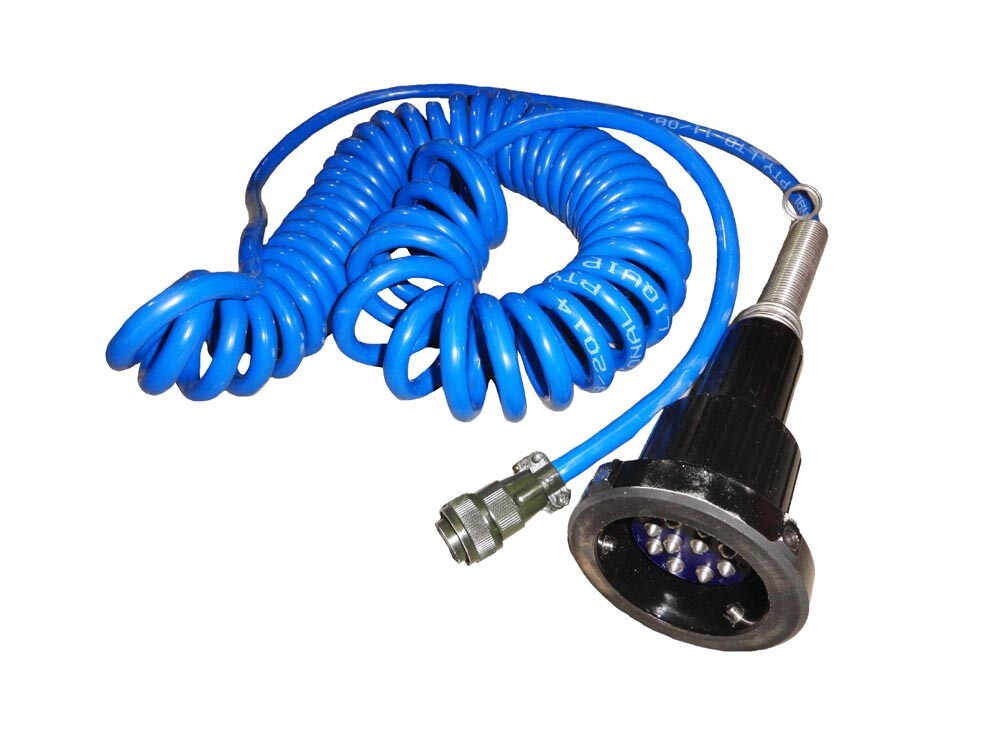

Gantry Plugs & Cables (mil spec) - GP114

The GP114 is a 4 pin gantry plug which comes with a mil spec connector plug to allow for quick connection/disconnection.

The GPx14 is designed for use with common industry overfill protection monitors and vehicles including the Liquip RM140 “Overfill Monitor”.

Features & Benefits
  • Quick disconnect gantry plug for overfill monitors.
  • Allows customers to exchange suspected faulty or damaged gantry plugs without needing an electrician.
  • Cater for up to 8 compartments with 2-wire probes.
  • Acts as a break-away junction if drivers fail to disconnect gantry plugs and just drives away.
  • Cable is ten-core self-coiling as standard or can be supplied as 8m long uncoiled.
  • Robust petroleum-resistant housing which can withstand harsh environments.
  • Each core is 32 strand tinned copper.
  • High-visibility cable for ease of visibility and safety.
Technical Information

Cable specifications
Resistance R = 0.0178Ω/m.
Capacitance C = 45 pF/m.
Inductance L = 0.325 μH/m.

Materials
-Aluminium Quick Release plug.
-Polyurethane socket body.
-Stainless steel pins and fittings.
-10 core cable, outer polyurethane.

Weight
4kg (complete kit).

Ordering Information

GP114: Gantry plug, 4-pin bayonet, Black, with self-coiling blue cable supplied with quick release connector.

GP114Z: Gantry plug, 4-pin bayonet, Black, with self-coiling blue cable supplied with quick release connector & gland.



Associated Equipment

JB100: Junction box comes with 2 x ¾” NPS cable entries at top and bottom.

JB103: Junction box comes with 3 x ¾” NPS cable entries at top, bottom and left hand side.

5115: Self-store coiled cable, Blue.

Liquip RM1xx Series Overfill Protection Monitor.

Liquip PD50x Series Overfill Protection Monitor.

Liquip TP Series “Ground Boss” Truck Plug.

Liquip TPA Series Gantry Plug Parking adaptors.
