Design working pressure
110 psi (7.58 bar) maximum pressure
Materials
Body: Cast aluminium.
Main Stem: Stainless steel.
Stem Seal: Buna-N O-Ring.
Main Poppet Disc: Viton®.
Spout: 297AF-9070
Performance

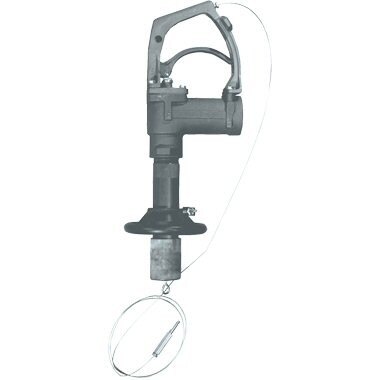

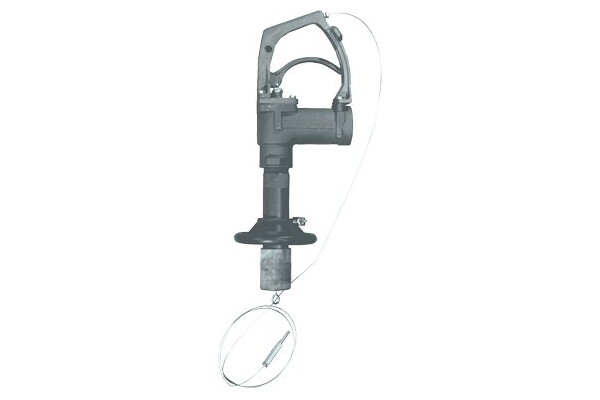

295AF Aircraft Nozzles
For Overwing Aircraft Service.
- Aluminium Body - lighter weight, easier to maneuver.
- Dual Poppets - easy-to-open nozzle against high inlet pressures.
- Replaceable Lever Guard - easy, low-cost replacement.
- Right Angle Design - provides larger lever area for better grip and easier control.
- Vinyl-Coated Lever - insulates fingers against cold.
- 100 Mesh Strainer - prevents foreign matter from entering fuel tank; easy to remove and clean.
- Dust Cap - keeps spout free from dirt and stops fuel drippage when connected.
- Spout Protector Ring - to protect aircraft tanks and wing surface; adjustable. Furnished as standard.
- Special Heavy-Duty Spout - knurled to facilitate daily strainer service.
- NPT Female Threads at Inlet End - standard pipe threads all 1-1/2" male connections.
- Static Ground Wire - with air force plug meets MS 25384-5.
- Dash-Pot Action - for smoother closing action and reduced line shock.
| Item Number |
Inlet Thread |
Weight |
||
|---|---|---|---|---|
|
in. |
mm |
lbs. |
kg |
|
| 295AF-0100 |
1-1/2" |
38 |
6.40 |
2.90 |
Gov’t. Nat’l. Stock #: 4930-01-293-4472
295 Series Instruction Sheet Order Number: H09237PA
Replacement Parts
| Item Number | Description |
|---|---|
| 153AF-0100 | 100 Mesh Strainer |
| 190WF-8002 | Ground Wire S/A w/ Dust Cap |
| C03420NM | Protector Ring |
| C03422 | Dust Cap |
| 297AF-9070 | 1-1/2" Aluminium Spout for 295AF |
| E00274AG | Arctic Guard for 295AF |
295SRK Seal Repair Kit
Designed for use on 25 series swivels and 295 nozzles, the OPW 295SRK consists of a dust seal, 2 O-rings, 3 button-head screws, hex key and thread sealant.
| Item Number | Used On |
|---|---|
| 295SRK-0001 | 25 and 295 Series 1", 1-1/4" (NPT) |
| 295SRK-0002 | 25 and 295 Series 1-1/2" (NPT) |
295SRK Materials
- Body: electroless nickel-plated
- Bearings: molded plastic
- Seals: Buna-N O-Ring, felt dust seal, Viton® O-Ring
