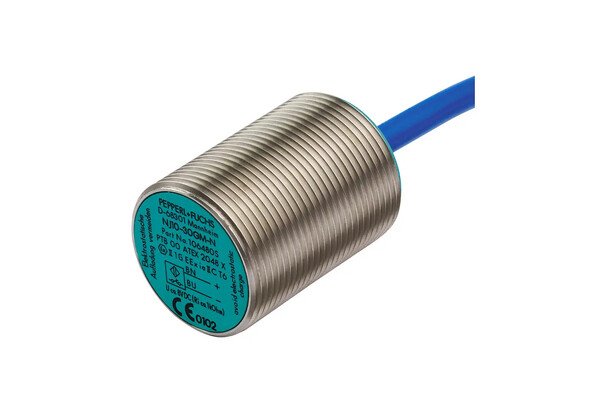

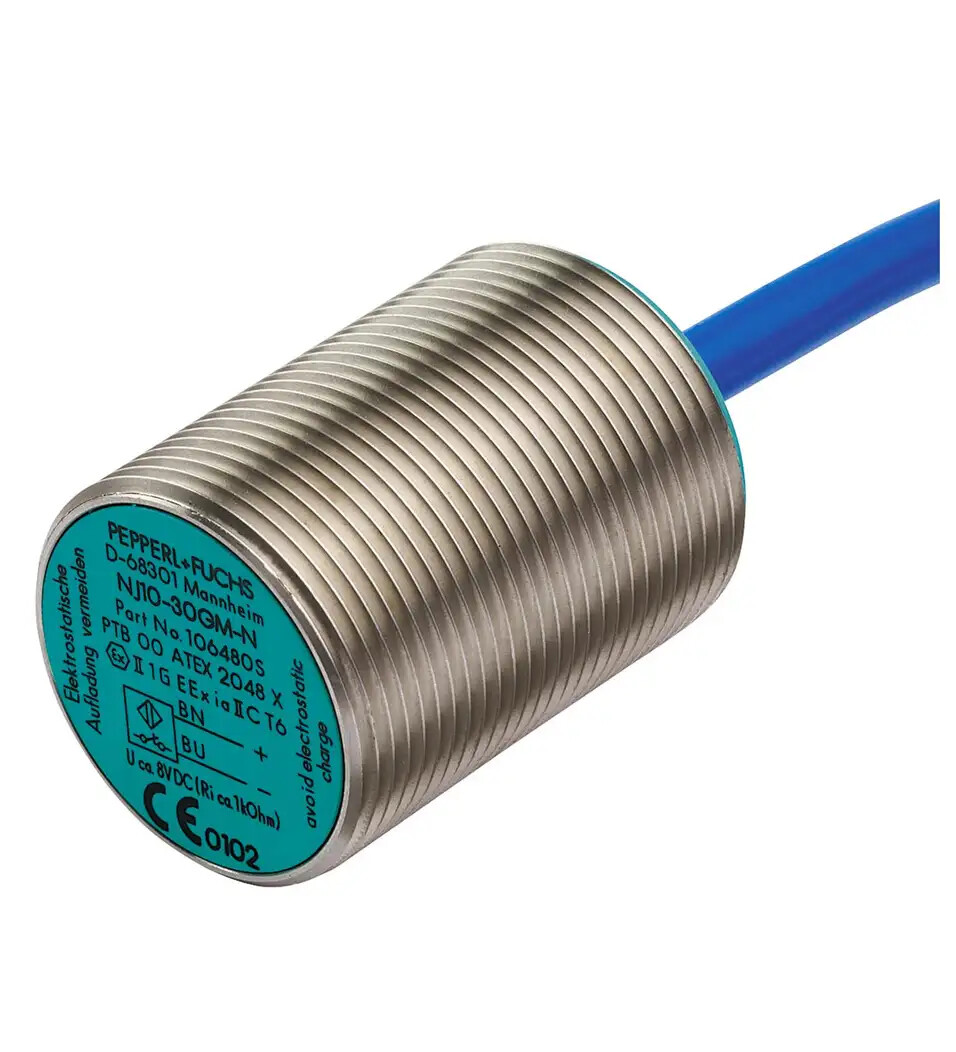

General Specifications
Switching function: Normally closed (NC)
Output type: NAMUR
Rated operating distance: Sn - 10 mm
Installation: Flush
Assured operating distance: Sa - 0 ... 8.1 mm
Reduction factor rAl: 0.4
Reduction factor rCu: 0.3
Reduction factor r304: 0.85
Output type: 2-wire
Nominal Ratings
Nominal voltage: 8.2 V (Ri approx. 1 kΩ)
Operating voltage: 5 - 25 V
Switching frequency: 0 - 300 Hz
Hysteresis: 3 %
Current consumption:
Measuring plate not detected ≥ 3 mA at nominal voltage
Measuring plate detected ≤ 1 mA at nominal voltage
Functional safety related parameters
Safety Integrity Level (SIL) : SIL 2
Compliance with standards and directives
Standard conformity
NAMUR : EN 60947-5-6:2000 IEC 60947-5-6:1999
Standards : EN IEC 60947-5-2
Approvals and certificates
IECEx approval
Equipment protection level Ga IECEx PTB 11.0037X
Equipment protection level Gb IECEx PTB 11.0037X
Equipment protection level Da IECEx PTB 11.0037X
Equipment protection level Mb IECEx PTB 11.0037X
ATEX approval
Equipment protection level Ga PTB 00 ATEX 2048 X
Equipment protection level Gb PTB 00 ATEX 2048 X
Equipment protection level Da PTB 00 ATEX 2048 X
UL approval : cULus Listed
Load Type: General Purpose
Circuitry: Class 2 Power Source
Enclosure Type Rating: Type 1
Supply/Switching Voltage: 8.2 V DC
Ordinary Location : E87056
Hazardous Location : E501628
Control drawing: 116-0452
CCC approval
Hazardous Location : 2020322315002255
CML approval : on request
ANZEx : 18.3018X
KCC approval
Hazardous Location : 19-AV4BO-0227
Marine approval : DNVGL TAA00001A5
Ambient Conditions
Ambient temperature : -25 - 100 °C (-13 - 212 °F)
Mechanical specifications
Connection type: cable
Housing material: Stainless steel 1.4305 / AISI 303
Sensing face: PBT
Degree of protection: IP66 / IP67
Cable
Cable diameter: 6 mm ± 0.2 mm
Bending radius: > 10 x cable diameter
Material: PVC
Core cross section: 0.75 mm2
Length: 2 m
Dimensions
Length: 40 mm
Diameter: 30 mm
General Information
Scope of delivery : 2 self locking nuts in scope of delivery
Use in the hazardous area : see instruction manuals
