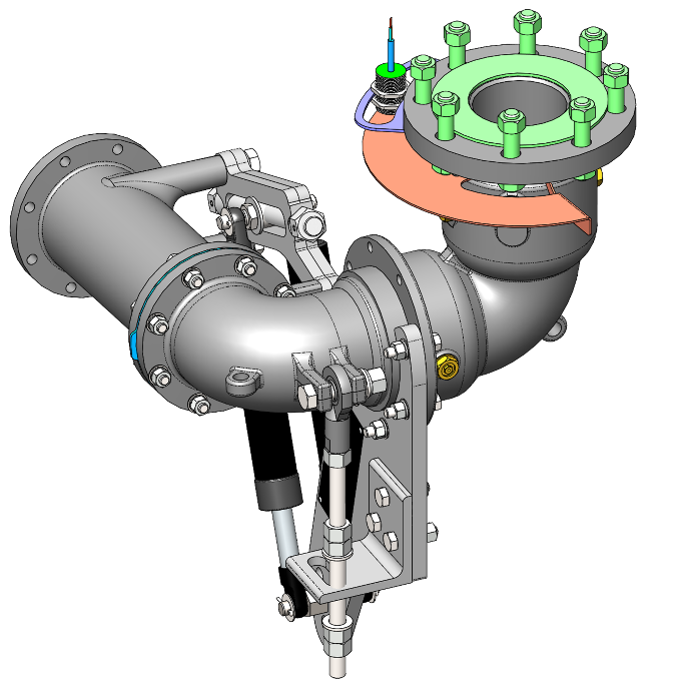

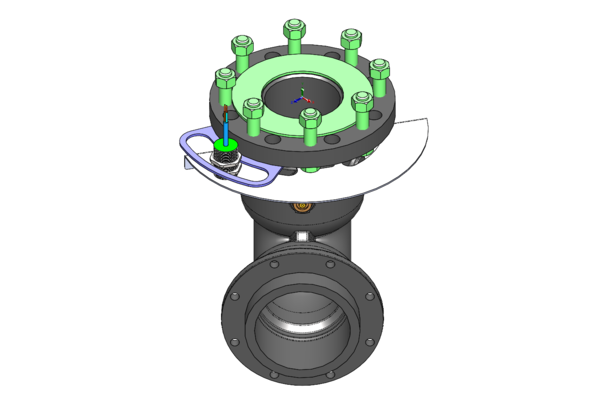

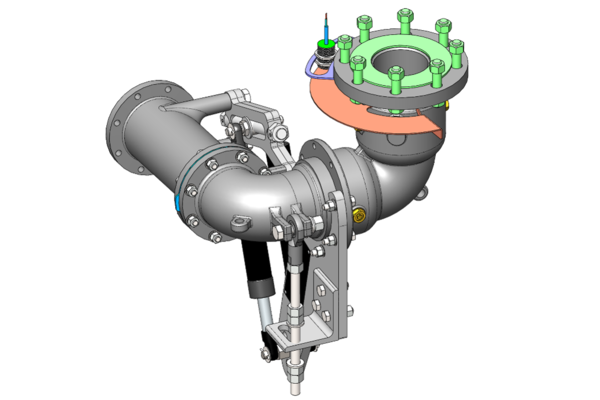

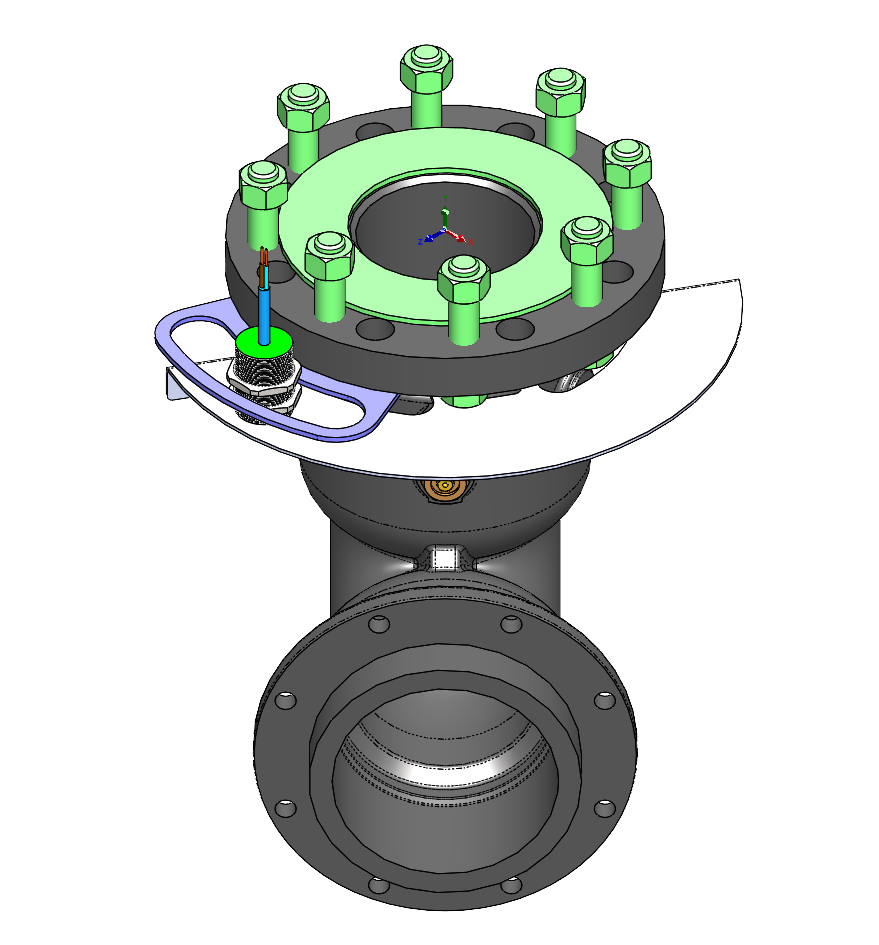

LBM800-PSA Position Sensor Assembly

Liquip design and manufacture the LBM800-PSA position sensor assembly for use on its LBM800 balance mechanism.

The LBM800-PSA can be mounted on an LBM800 in any configuration i.e. downward, upward, left or right feed and can be used in either top or bottom loading applications.

The LBM800-PSA is supplied as standard with a 5544 proximity sensor but can be supplied as a bracket only for local sourcing of a preferred sensor (contract Liquip for further details).

Suitable for :



Features & Benefits
  • Easily verify which loading arm is in use thanks to a simple proximity sensor mounted the arm.
  • Sensor output can be integrated into terminal automation system as required.
  • Easily retrofitted to existing loading arms with an LBM800 balance mechanism.
  • Quick and simple installation on new or existing arms.
  • Stainless Steel construction for durability and extended service life.
Ordering Information

LBM800-PSA: LBM800 Position Sensor Assembly. (prox switch supplied separately).

Associated Equipment

LBM800: Standard Balance Mechanism.

LBM800C: Chemical Balance Mechanism.

LBM800AVI: Aviation Balance Mechanism.

LBM800-LR: LBM800 Long Reach (Top Load Balance Assembly).

LBM800-1Z: LBM800 with 2 x 2800N Struts.

LBM800-2Z: LBM800 with 2 x 5200N Struts.

LBM800-3Z: LBM800 with 2800N & 5200N Strut.
