- Allows the loading coupler to rotate in 360o in the horizontal plane.
- All aluminium construction (heat treated).
- Ball and needle rolling elements for optimum axial and radial load bearing with minimum
- Grease nipple one side with relief valve mounted opposite for efficient removal of old grease and debris.
- Dual o-rings for product seal and dust seal respectively.
- Viton GFLT grade o-rings (Teflon or other special seals available on request).
Handle can be ball-type or D-handle.
1,000 kPa (145 PSI)
1,500 kPa (218 PSI).
-20° to +80°C (-4° to +176°F) for EPDM & Viton B70 grade
-40° to +60°C (-40° to +140°F) for Viton GFLT grade
6.0 kg (13lb)

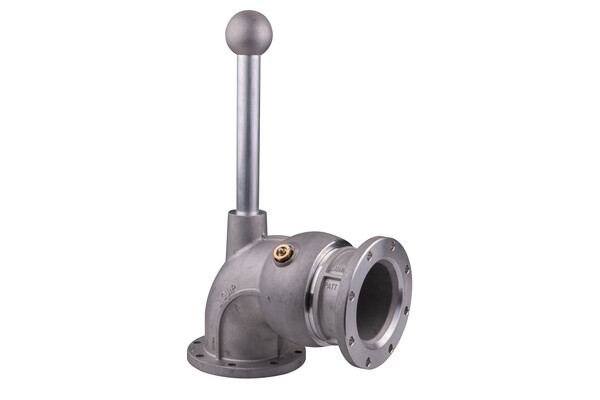

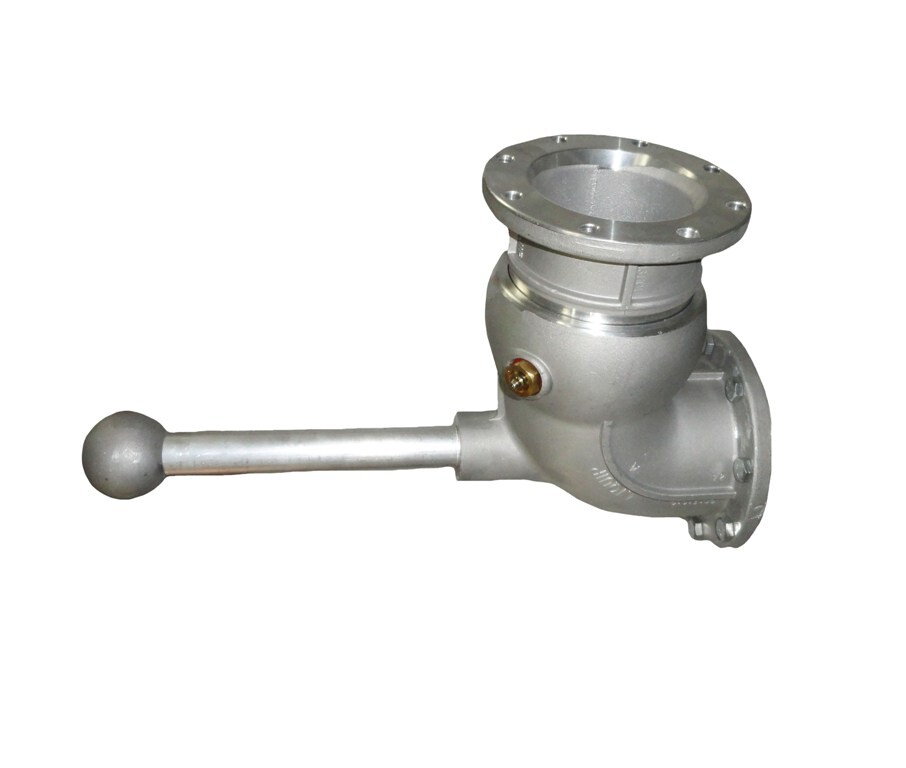

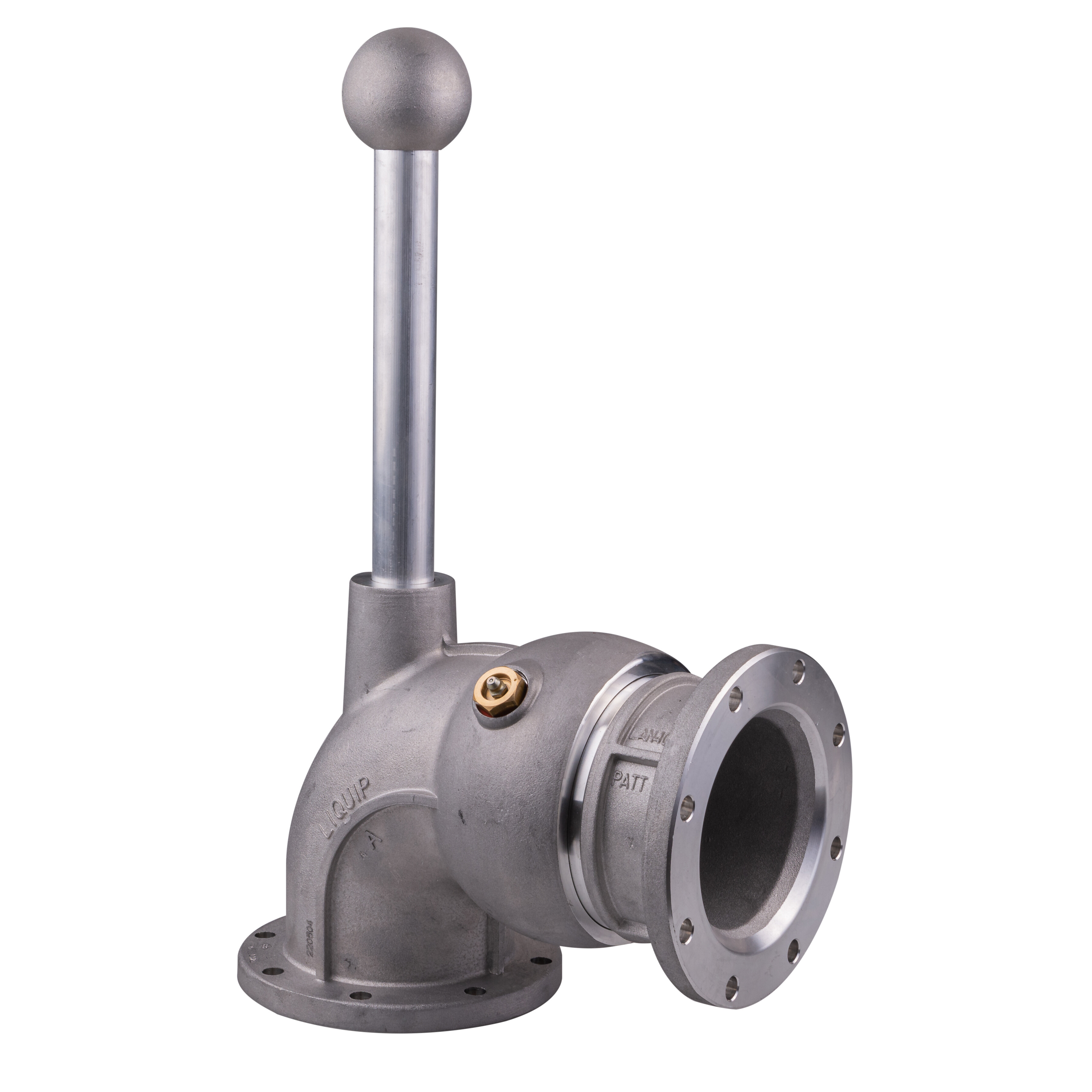

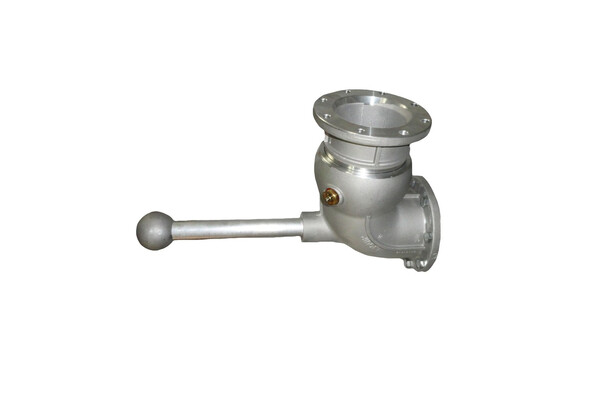

VNC-A4VG: 4" coupler swivel with Viton GFLT seal.
VNC-A4T: 4" coupler swivel with Teflon seal.
VNC-A4AVI: 4" coupler swivel with Viton GFLT seal & Aviation grease.
VNC-A4DVG:4" coupler swivel with Viton GFLT seal & D-handle.
VSS-4: Straight spool piece 200mm (8”) long
VSA-4: 15° angled spool piece 200mm (8”) long.
LBV450VG: Butterfly Valve to suit 4” TTMA flange
All Liquip APIbottom loading couplers
