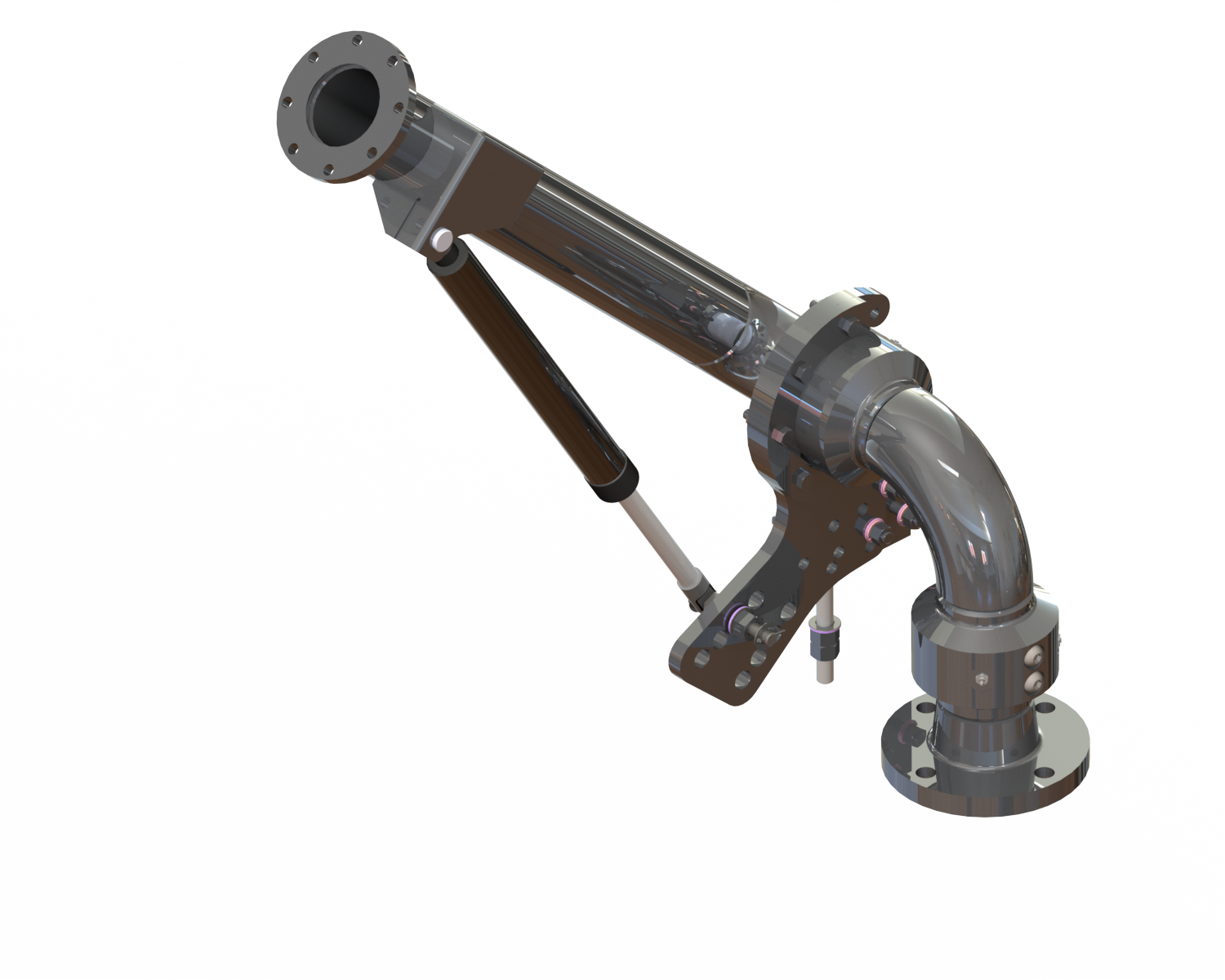

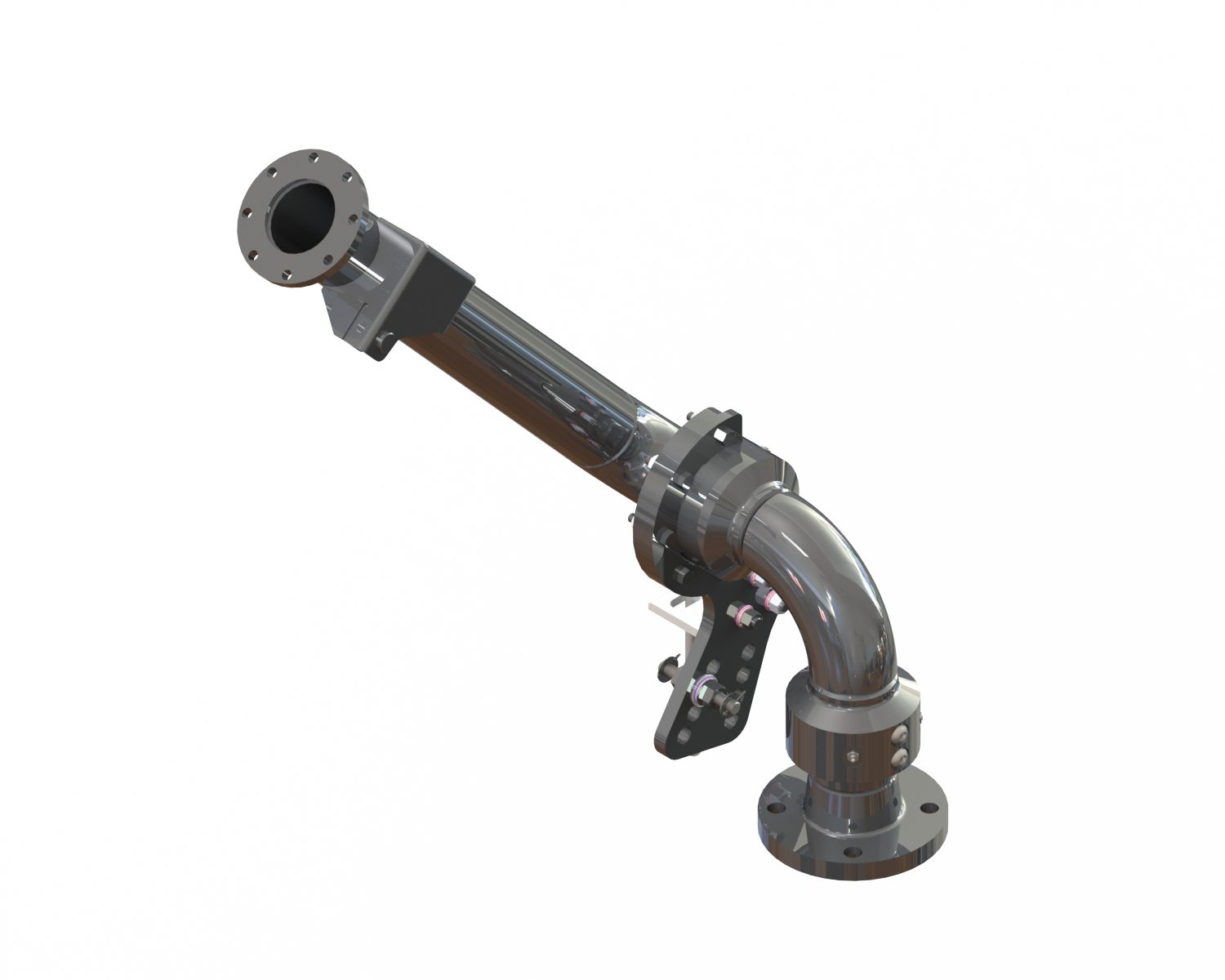

Liquip 3" Loading Arm Balance Mechanism

Liquip's 3" loading arm balance mechanism combines industry leading design and manufacturing with years of in-field proven use.

The 3" balance mechanism has been developed for use in top and bottom loading applicaitons where 3" loading arms are the prefered sizes. Liquip's 3" balance mechanism leverages the unique design and features of the 4" LBM800 including offering efforttless loading through the use of Liquip's 'Velvet Touch' technology.

The ability of 360° rotation in the horizontal plane allows the 3" balance mechanism to easily move from a parked to loading position, to service vehicles on either side of the loading bay. While the vertical plane swivel allows users to position the coupler at different heights within the loading envelope.

Suitable for:

Features & Benefits
  • Superior safety through Liquip’s unique gas strut design.
  • Exceptional durability and minimal servicing requirements thanks to the best in class base swivel assembly and overall design
  • Can be easily configured by Liquip for left hand, right hand, upward and downward feed configurations (contact Liquip at time of order).
  • Slimline drop leg bracket provides easy installation, compact overall size and allows for multiple mounting positions to suit various applications.
  • Enhanced strength and ease of adjustment through a heavy duty adjustment mechanism.
  • Downtime during installation is reduced by an all-flanged design.
  • Outlet spool provides an industry standard 3” TTMA connection for simple installation.
  • Adjustable up/down stop that can be set with minimal effort.
  • Variety of product seals available on request.
  • Velvet touch provides smooth operation over the entire stroke of the loading arm.
  • Complies with API RP 2003 for bond resistance requirements for static dissipation.
  • Steel design with reliable use in field.
  • Simplified design minimises welding and labour hours to manufacture.
Technical Information

Material
Steel.

Design Pressure
1,000 kPa (145 PSI).

Test Pressure
1,500 kPa (217 PSI).

Temperature Limits
Typical: -40°C to +90°C (-40°F to +200°F).
Contract Liquip for specific requirements.

Range of Motion
Horizontal 360°,
Vertical: depending on applicaiton

Typical Radius of arm
typical: 1300mm to 4000mm.

Weight
approx 50kg.

Min Moment
TBC.

Max Moment
TBC.

End Connections
Base flange is 3” ASME Class 150 raised face.
Outlet flange is  3” TTMA pattern.

Counter balance type
Single or Dual gas struts.

Seal Material
Range of  seals available on request.

Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the Liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

4416: Standard Bottom loading arm gas strut 2,800N, 500mm (black boot).

3008: Standard Bottom loading arm gas strut 5,200N, 500mm (green boot).

4450: Pantograph loading arm gas strut 3,200N, 800mm (black boot).

5449: A-frame Bottom loading arm gas strut 5,200N, 800mm (black boot).
