Intermediate Swivels

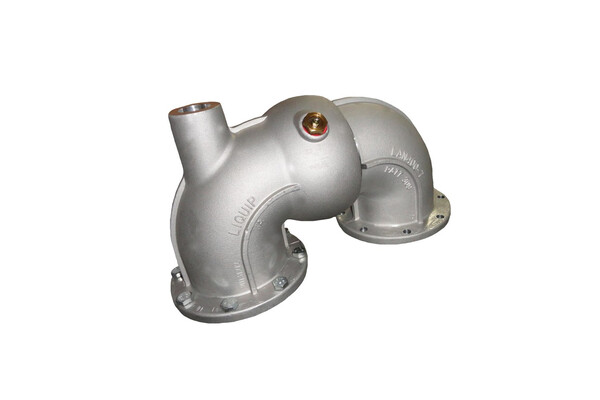

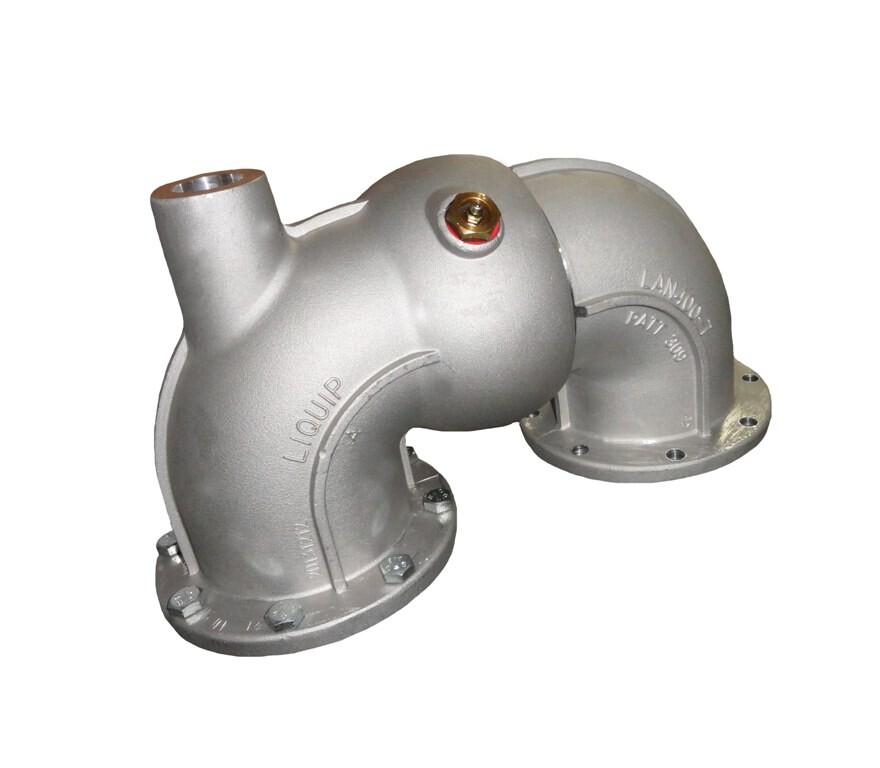

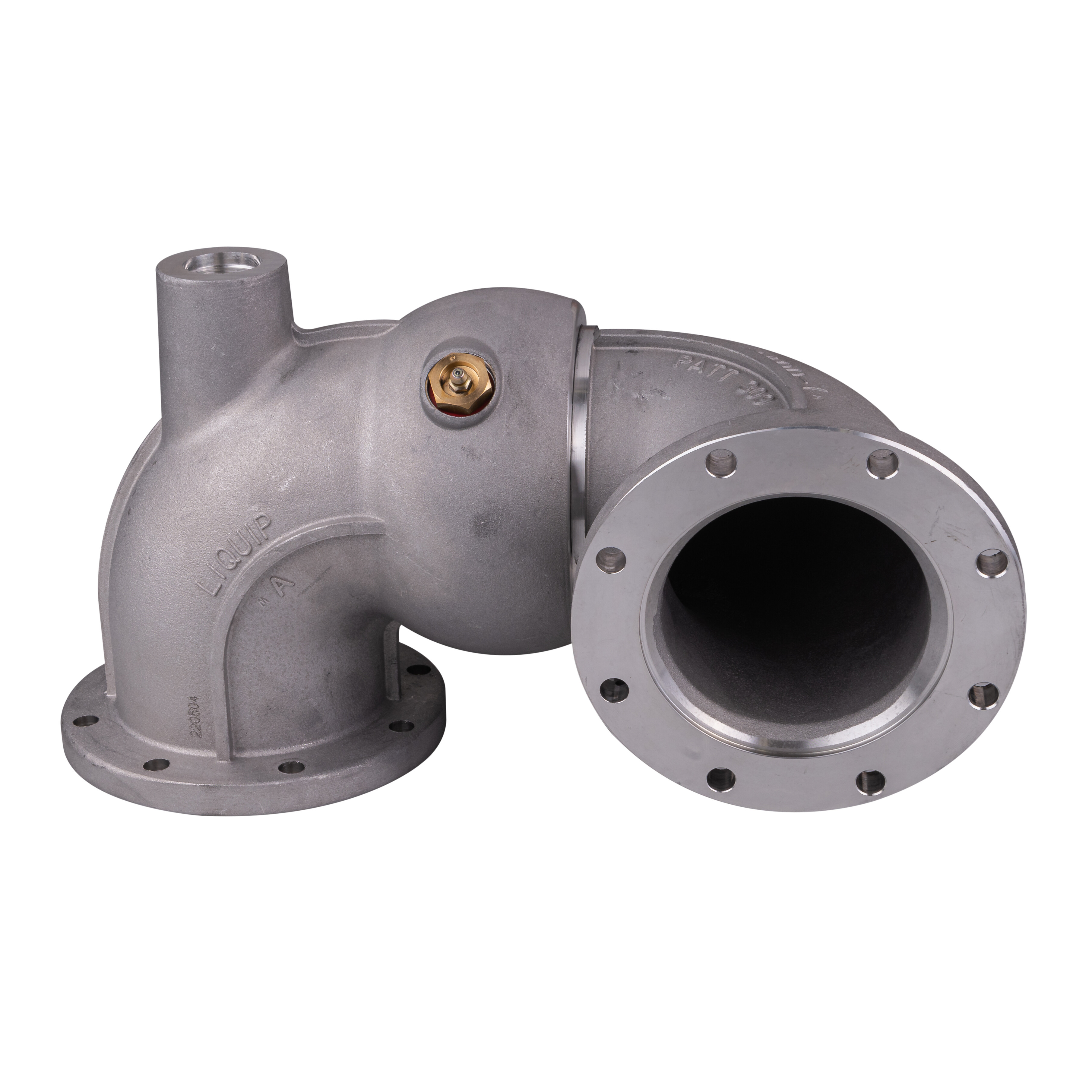

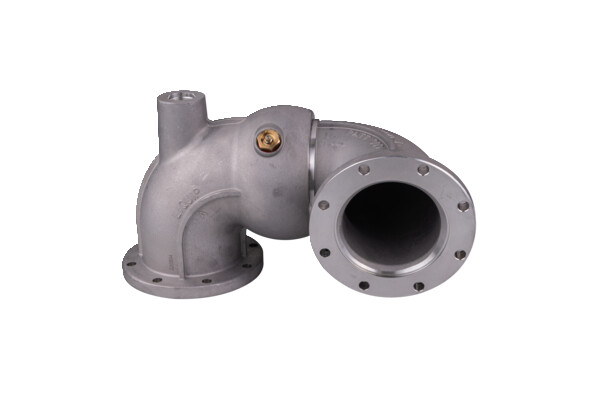

Liquip offers a 180o single-plane swivel that is mounted so that the loading coupler swings in & out relative to the tanker API adaptor

Features & Benefits
  • Allows the loading arm to rotate in 180o so that the loading coupler swings in & out relative to the tanker adaptors.
  • All aluminium construction (heat treated).
  • Ball and needle rolling elements for optimum axial and radial load bearing with minimum
    friction.
  • Grease nipple one side with relief valve mounted opposite for efficient removal of old grease and debris.
  • Dual o-rings for product seal and dust seal respectively.
    • Viton GFLT grade o-rings (Teflon or other special seals available on request).
Technical Information

Working pressure

1,000 kPa (145 PSI)

Test pressure
1,500 kPa (218 PSI).

Operating temperature
-20° to +80°C (-4° to +176°F) for EPDM & Viton B70 grade
-40° to +60°C (-40° to +140°F) for Viton GFLT grade

Weight
 5.6 kg (12.3lb)

Ordering Information

VNI-I4VG: 4" intermediate swivel with Viton GFLT seal.

VNI-I4AVI: 4" intermediate swivel with Vtion GFLT seal and Aviation grease.

VNI-I4T: 4" intermediate swivel with Teflon seal.
