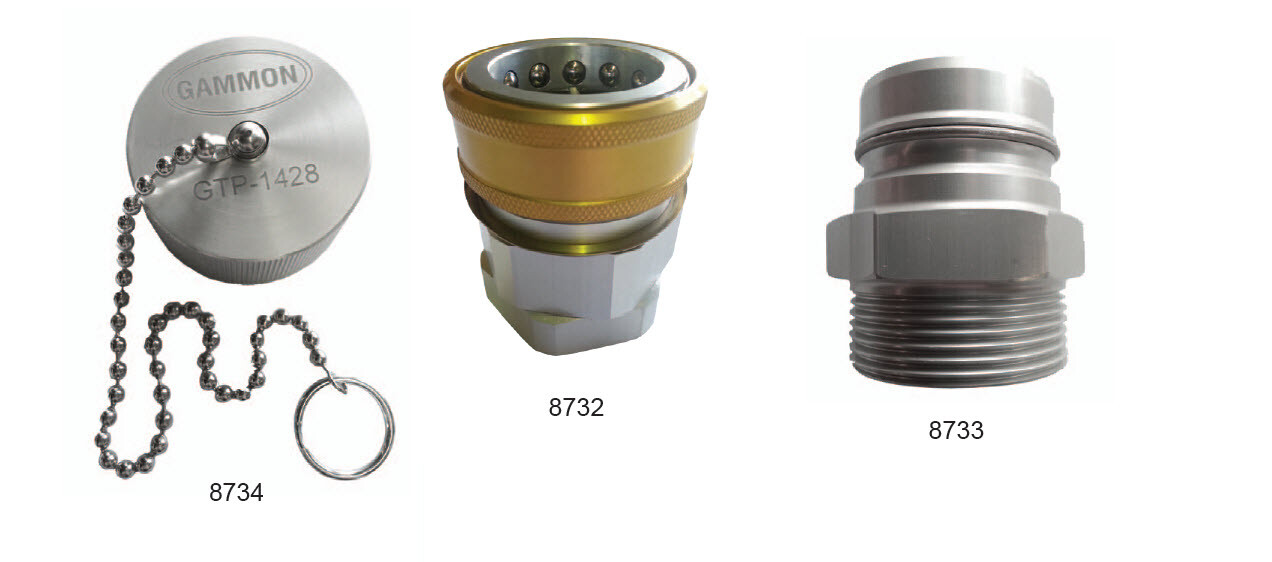

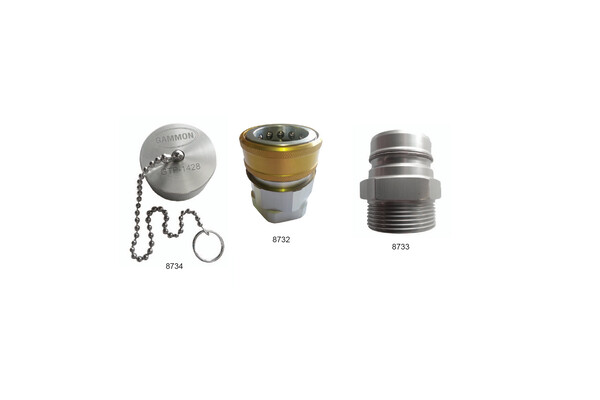

Gammon Hose Quick Disconnect

Liquip offers gammon connections to provide fast changeover from overwing to underwing nozzles with no spillage.





Features & Benefits
  • Fast operation - connect and disconnect in seconds, without tools.
  • Dependable operation - the ball-lock mechanism is the simplest, most reliable type in use, providing positive connection under constant or surge flow - even excessive shock.
  • A ball bearing sleeve lock permits 360 swivel action, preventing building up of hose torque
  • Tight seal disconnect - the poppet has a metal to metal stop to control compression on the valve o-ring seal.
Technical Information

Low Pressure Drop Design
1 1/2": 2.6 psi @ 189.3LPM
2" 2.9 psi @ 379.5LPM

Ball bearings
Hardened stainless steel balls and stainless steel ball race provide extra long service.

Seal
Molded U-Packer seal provides contact over several times the normal O-ring sealing area. Its design embodies a self-energising feature that gives a positive seal at all pressures. This seal is capable of sealing under side loads and will tolerate small scratches and some dirt without leakage.

Connection
To connect, pull back sleeve, push connector into coupler and release sleeve.

Disconnection
To disconnect, pull back coupler sleeve and connector halves separate. Valve opens automatically when halves are connected.

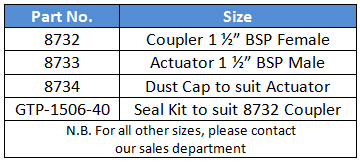

Ordering Information
