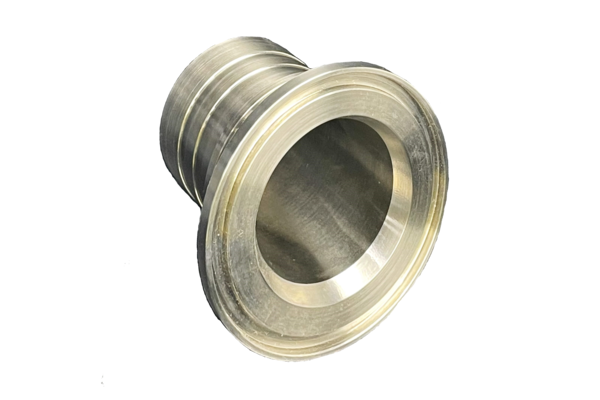

AHR430M-9-1 Hose End Fitting

Liquip supply a hose end fitting for use on a range of Liquip drum
and cartwheel style hosereels.

The AHR430M-9-1 accepts 50mm ID hose and is secured with hose
tail clamping ferrules such as the Elaflex SC50 Spannloc fitting.
The mating half of the hose end fitting is secured to the
compatible Liquip gooseneck using a O-ring and tri-clover style
clamp.

The design of the AHR430M-9-1 allows users to easily install and
remove the Spannloc clamp for serviceability without the need for
additional tools.

A Stainless Steel design ensures the hose end can be used in a
range of environments and is suitable for both commercial and
military aviation refuelling applications.
