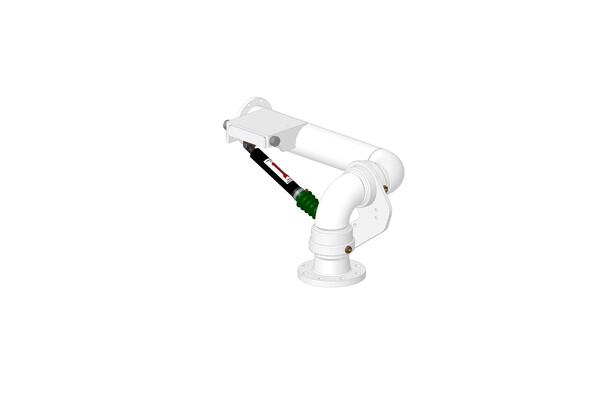

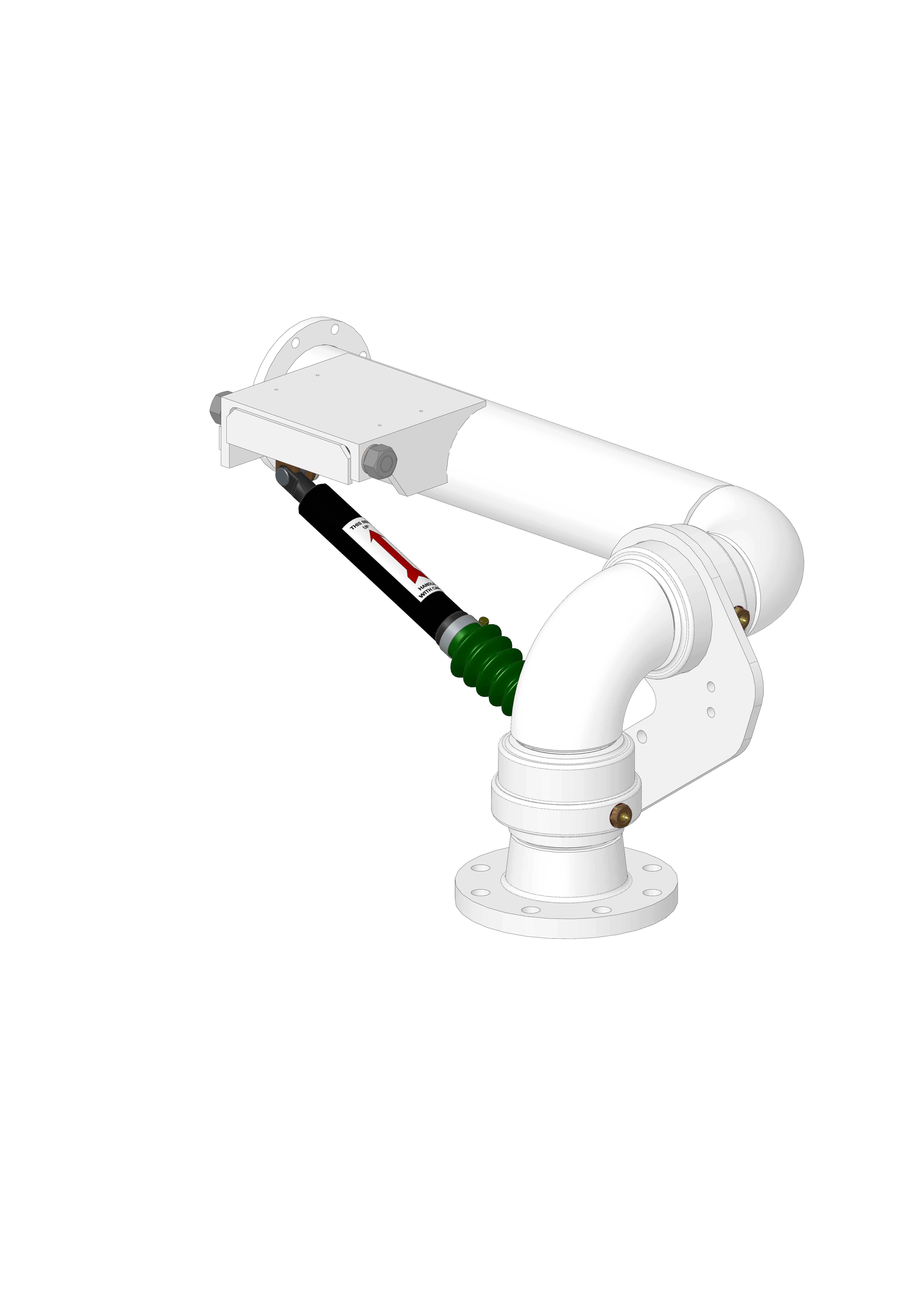

VBB Series

Liquip offers a unique balance assembly to be used with long reach and low profile arms. These can also be used for gravity or pumped discharge of road and rail tankers, as well as for bottom loading.

Liquip’s VBB series is used with MK3 laoding arms. The “Velvet Touch” Mark 3 loading arm is a breakthrough in balance systems for bottom loading.  This particular loading arm has been purpose designed to suit that market where a practical application outweighs style and looks.












Features & Benefits
  • Utlises Liquip’s famous Lift-o-mat strut balance mechanism.
  • Arms can reach both sides of a loading gantry.
  • Avaliable in 75mm or 100mm NB.
  • Available in a range of materials to suit various fluid transfer applications.
  • Uses a single gas-spring to counter-balance the weight of the arm which means the mup and down movmeent of the arms requires minmal effort.
  • Steel swivels run on needle roller bearings with much lower friction than the traditional double row ball bearings.
  • A pressure relieving nipple allows old grease and particles to be expelled and also provides visible evidence of greasing being thorough and prevents over pressuring.
Technical Information

Maximum Pressure
1,000kPa

Maximum Viscosity
150cSt viscosity (when loading valve is used).

Typical Reach
1750mm

Operating Temperature
-30oC to 200oC (depending on seals used).

Mounting
100mm standard size but also avaliable in 75mm NB.

Materials
Mild Steel and Stainless Steel 316 grade is avaliable.

Seals
Product seals are available in Viton or PTFE.

Ordering Information

VBB075MMVMK3 balance assembly, mild steel c/w viton seals.
VBB075MMLV: Left hand MK3 balance assembly, mild steel c/w viton seals.
VBB100MMILVG: Left hand, inverted MK3 balance assmebly, mild steel c/w viton seals.
VBB100MMIT: Inverted MK3 balance assembly, mild steel c/w teflon seals.
VBT100MMIVGMK3 balance assembly, steel c/w viton GFLT seals.
VBB100MMLVG: Left hand MK3 balance assembly, mild steel c/w viton GFLT seals.
VBB100MMIT: Inverted MK3 balance assembly, mild steel c/w Teflon seals.
VBB100MMIVG:  Inverted MK3 balance assembly, mild steel c/w Viton GFLT seals.
VBB100MMLT: Left hand MK3 balance assembly, mild steel c/w Teflon seals.
VBB100MMLVG: Left hand MK3 balance assembly, mild steel c/w Viton GFLT seals.
VBB100MMT: Mk3 balance assembly, mild steel c/w Teflon seals.
VBB100MMVG: MK3 balance assembly, mild steel c/w Viton GFLT seals.
VBB100SSIT: Mk3 balance assembly, Stainless steel c/w Telon seals.
VBB100SSIV: Inverted MK3 balance assembly, Stainless steel v/w Viton seals.
VBB100SST: MK3 balance assembly, Stainless steel v/w Teflon seals.

Associated Equipment

Liquip MK3 loading arms.
