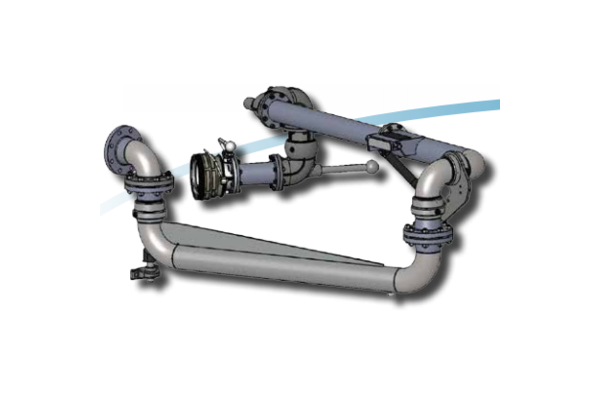

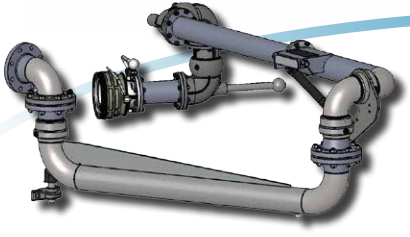

Unloading Arms

Liquip uses the latest in available design and manufacturing techniques to ensure that our unloading arms work to their full potential, giving you the best possible solution.

Unloading arms can load at flow rates of up to 2,500 litres per minutes and are popular for large single compartment tanker unloading such as railcars and aviation bridging tankers.

Features & Benefits
  • Ideal for where there are space limitations overhead.
  • Can be used in sites without a gantry structure in place.
  • Available in a self draining design.
  • Quick unloading at flow rates of up to 2,500 LPM.
  • Compact Storage.
  • Provides flexible long range movement.
  • Suitable for gravity or pumped discharge of road and rail tankers.
  • Available in a range of materials to suit various fluid transfer applications.
Technical Information

Lengths
Low Profile arms can be built in lengths of up to 5 metres.

Product Compatibility
Typical products handled by Low Profile arms include: Diesel, Jet Fuel. Petrol and various chemicals etc.

Sealing
A range of sealing options are available including: Viton, Teflon and FFKM.

Materials
Low Profile arms are available in aluminium, mild steel and stainless steel.

Ordering Information

Loading arm survey forms are available for users to fill out. Survey forms detail all technical requirements for your loading arm needs. These forms can be downloaded once you login to the Liquip website. Click here to obtain a login.

Alternatively, you can contact Liquip to receive a loading arm survey form and discuss any specific requirements you may have.

Associated Equipment

Unloading arm components

  • Primary arm with base swivel.
  • Balance assembly.
  • Gas struts.
  • Secondary arm.
  • Double coupler swivel assembly.
  • Multiple couplers options.
  • Butterfly valves.
  • Sightglasses.
