- Lightweight design for increased payload capacity.
- 38mm flow path throughout.
- The stainless steel manifold and 1½“ BSPT gooseneck allow for multiple product compatibility.
- The aluminium exterior eliminates the need for additional painting or coatings.
- Manifold, shafts and seal components can be easily accessed from the outside providing ease of service and maintenance.
- Can be driven by hydraulic motor. (Contact Liquip for other drive methods).
- • Incorporates a flexible hose connection to ensure longevity of the hosereel.
- A range of drum lengths available with the same hose capacity as their predecessors.
- Left or Right hand configurable to ensure flexibility during installation.
- Supplied as standard with an anti-rotation lock to prevent hose unravelling.
- All reels are Australian made and supported through Liquip’s distribution network.
Max allowable working pressure
Up to 2,100 kPa
4 x M10 Bolts - see mounting footprint on following pages.
Annually - check O-rings and replace as required.
Inlet and Outlet
(reducers required for sizes below 1½” BSPT)
Suits the following diameter hose:
-Stainless steel 304 manifold, gooseneck and wetted components
-Aluminium cheek plates and drum.
Weights (approx) (less motors)
310mm - 19 kg
460mm - 20 kg
610mm - 21 kg
Hosereel capacity in metres
|Hose Size (NB)
|1" (with beads)
|1 ¼" (with beads)
|1 ½" (with beads)
Hydraulic Rewind (motor and controls not included)

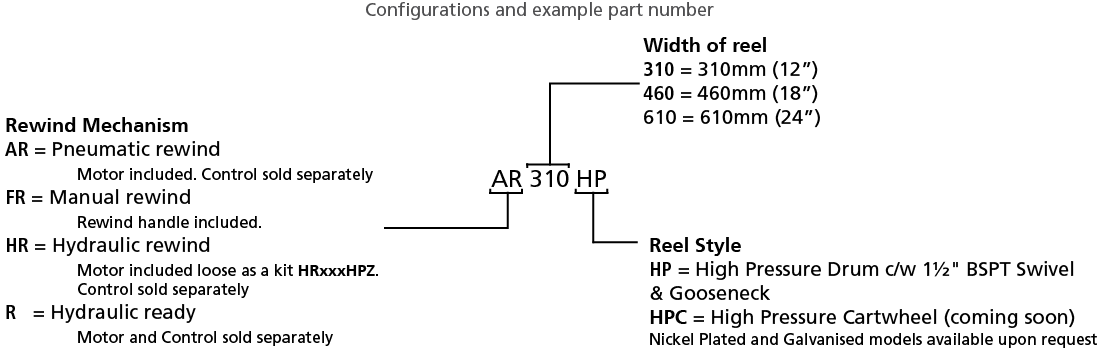

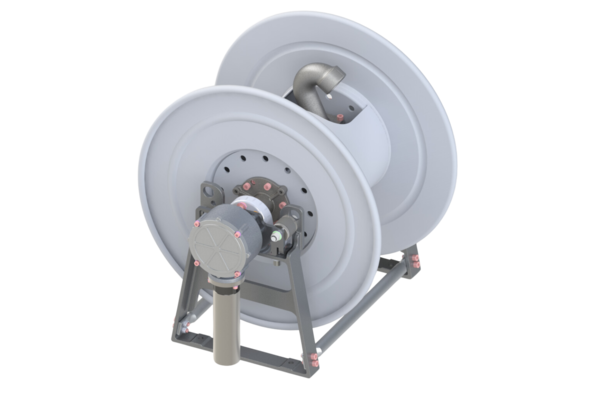

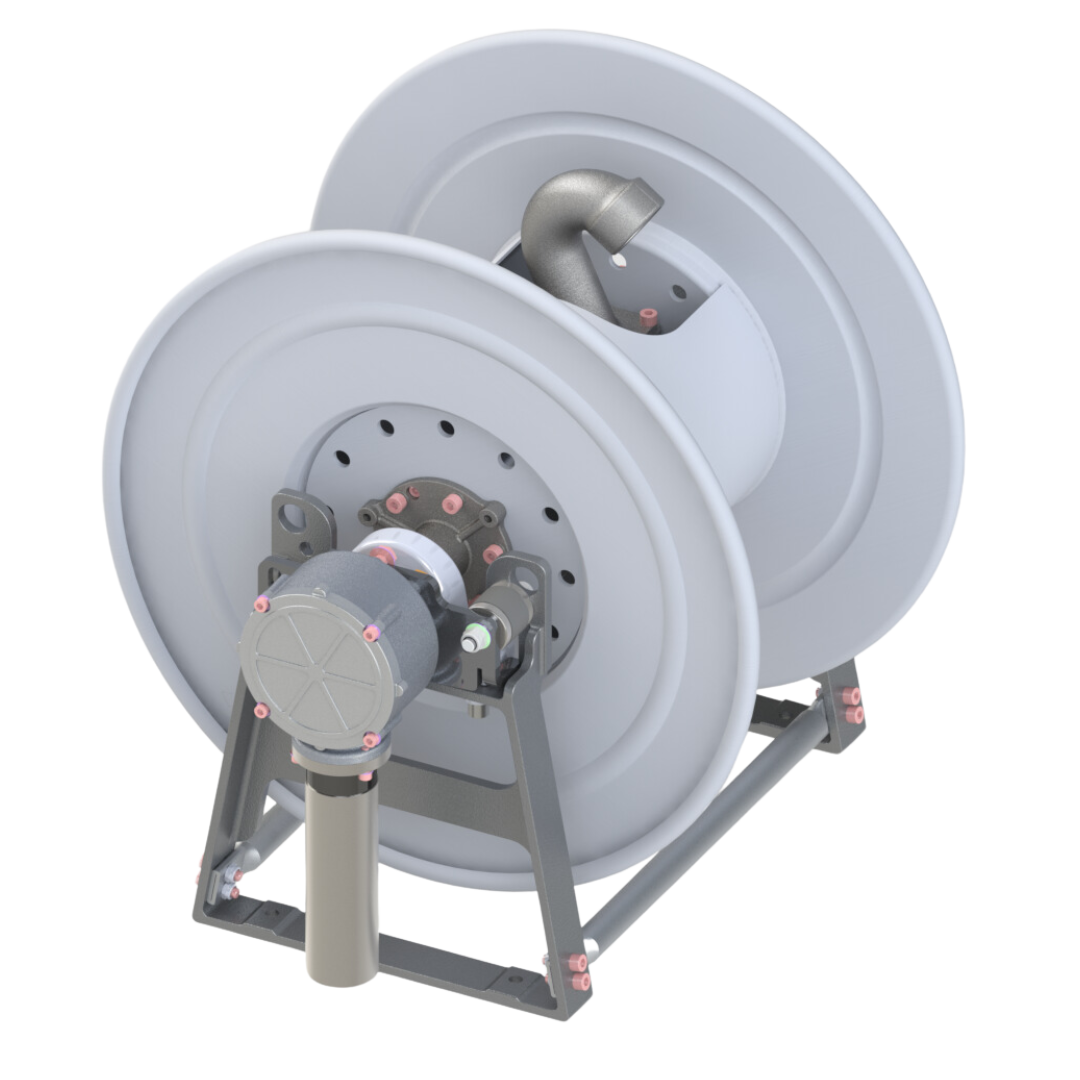

R310HP: 310mm (12”) High Pressure hosereel c/w motor mount bracket.

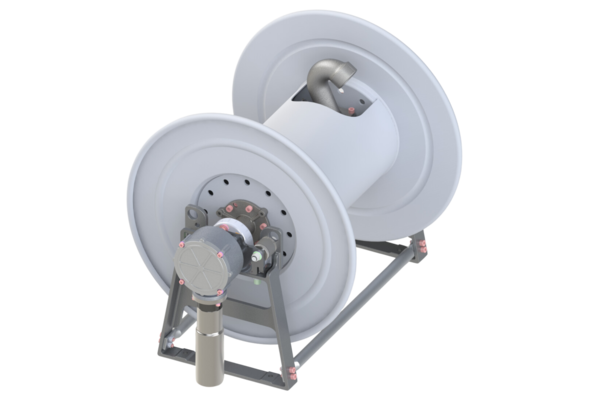

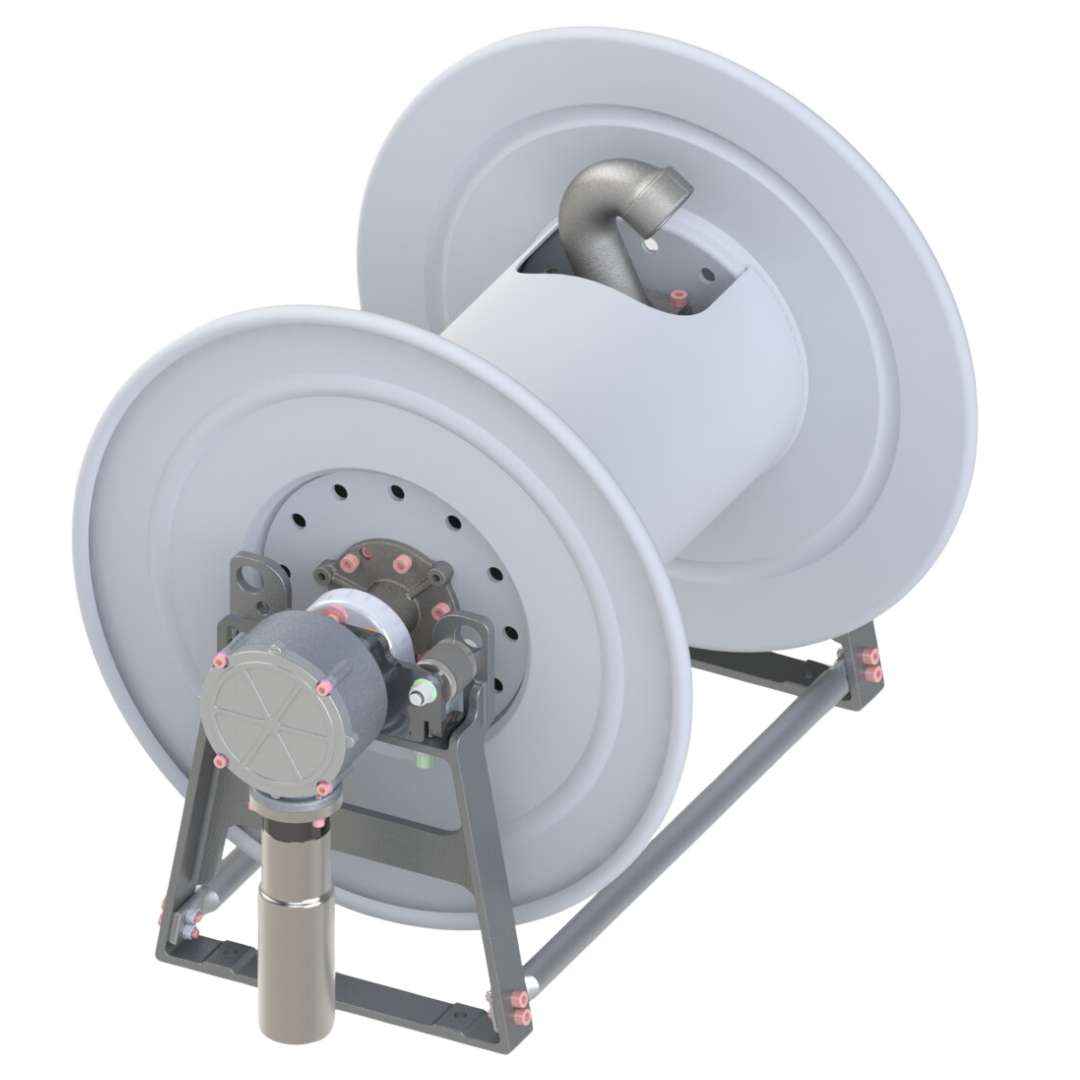

R460HP: 460mm (18”) High Pressure hosereel c/w motor mount bracket.

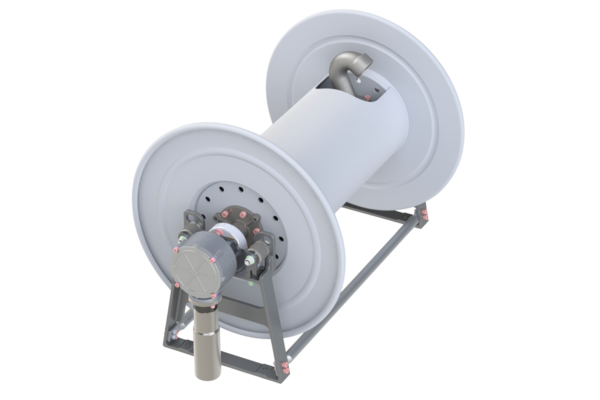

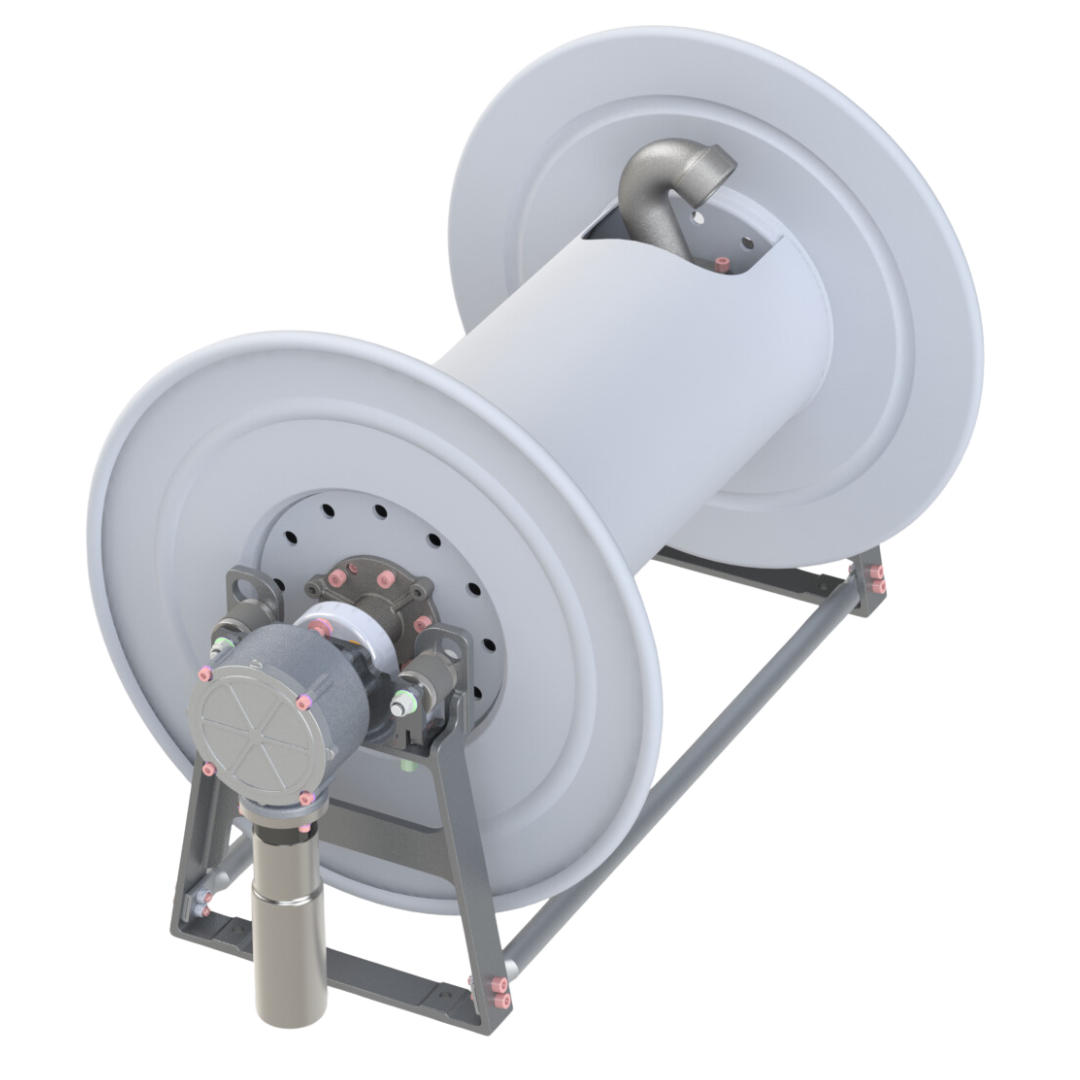

R610HP: 610mm (24”) High Pressure hosereel c/w motor mount bracket.
MOTOR AND CONTROL ASSEMBLIES
1295: HYD MOTOR DANFOSS (for hosereels).
Cartwheel/Catherine type hosereels: AHR250 series.
Aviation Drum style hosereels: AHR250D series (suit 2” and 2½” hoses).
Recommended hose: Continental/Elaflex/Alfagomma suction or delivery hose.
Recommended swivels: Liquip SJ series swivels or OPW swivels.
210L0104LLIQUIP: NOZZLE 1¼” BSPP C/W SPOUT OPW 210 SERIES HIGH FLOW
210L0105LLIQUIP: NOZZLE 1½” BSPP C/W SPOUT OPW 210 SERIES HIGH FLOW
