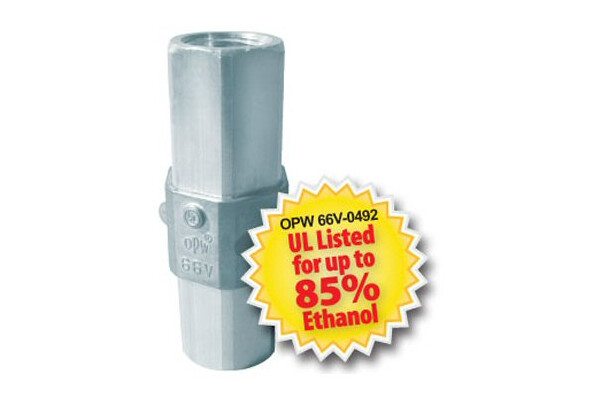

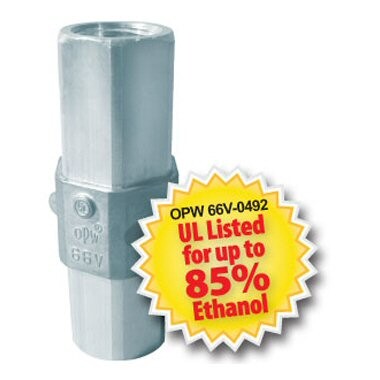

66V Series Breakaways

The OPW 66V Series breakaways are designed and rigorously tested for use in today’s fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation, stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential spilled fuel.

OPW 66H Series of Hoses

The OPW 66H Hoses are UL approved, steel reinforced hardwall flexible to -40°F. 3/4 inch inside diameter with 3/4 inch male NPT chrome crimped ends. Compatible with fuel blends up to E-15 & B-20. Maximum working pressure 50PSI. Also available in Low Permeation per UL330.

Features & Benefits
  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
  • Prevents Costly Damage to Dispensers – Pulls apart at less the designed pull force during drive-offs.
  • Certainty of Operation – Designed for single use, so you know it is replaced instead of re-assembled.
  • Prevents Hazardous and Costly Clean Up – Unique double poppet design closes leak path from both dispenser and separated hose side.
Technical Information

Design working pressure

  • 50 psi (3.45 bar) maximum pressure.

     Note:
     OPW 66V Series Breakaways must always be installed with a “straightening” hose with a minimum length of 9" for the ¾" Series and a minimum length of 12" for the 1" Series,
     such as the 66H Series hoses.

Materials

  • Body: Aluminum

  • Seals: Buna-N and Viton®

  • Weight: See matrix in the Ordering Specifications

Performance

Listings & Certifications

Note: OPW 66V Series Breakaways must always be installed with a "straightening" hose with a minimum length of 9" for the ¾" Series and a minimum length of 12" for the 1" Series, such as the 66H Series hoses.



Ordering Information
Item Number

Size

Weight

 Description - Pull Force

in.

mm

lbs.

kg
66V-0300

3/4 F x 3/4 F (NPT)

19 F x 19 F

0.6

0.27

 Valve / No More Than 300 lb.
66V-030RF**

3/4 F x 3/4 F (NPT)

19 F x 19 F

0.6

0.27

 Valve / No More Than 300 lb.
66V-0492*

3/4 F x 3/4 F (NPT)

19 F x 19 F

0.6

0.27

 Valve for up to E85 / No More Than 300 lb.
66V-1300

1 F x 1 F (NPT)

25 F x 25 F

0.98

0.45

 Valve / No More Than 300 lb.
66V-130RF***

1 F x 1 F (NPT)

25 F x 25 F

0.98

0.45

 Valve / No More Than 300 lb.
66V-1350

1 F x 1 F (NPT)

25 F x 25 F

0.98

0.45

 Valve / No More Than 350 lb.
66V-135RF***

1 F x 1 F (NPT)

25 F x 25 F

0.98

0.45

 Valve / No More Than 350 lb.
66-0075

3/4 F x 3/4 M (NPT)

19 F x 19 M

1.46

0.66

 Valve w/ 9" Hose/300 lb.
66-1300

1 F x 1 M (NPT)

25 F x 25 M

2.5

1.13

 Valve w/ 12" Hose/300 lb.
66S-0075

3/4

19

0.2

0.1

 Black Vinyl Scuff Guard Cover
66S-1300

1

25

0.2

0.1

 Black Vinyl Scuff Guard Cover

* 66V-0492 is UL Listed for up to 85% Ethanol.

** 66V-030RF is UL Listed for up to 25% Ethanol and 20% Biodiesel

*** 66V-130RF and 66V-135RF are UL Listed for up to 20% Biodiesel

66V Series 3/4" Instruction Sheet Order Number: H10993PA

66V Series 1" Instruction Sheet Order Number: H10993PA

66S Series Instruction Sheet Order Number: H11015PA



66H Series Hoses - Ordering Specifications

Item Number Length

Size

Weight

 Description

in.

mm

lbs.

kg
66H-0975 9 inch (23 cm)

3/4 M x 3/4 M (NPT)

19 M x 19 M

0.75

0.34

 Straightening Hose
66H-0975-LP 9 inch (23 cm)

3/4 M x 3/4 M (NPT)

19 M x 19 M

0.75

0.34

Straightening Hose LOW PERMEATION per 3rd Party Approval
66H-1300 12 inch (30 cm)

1 M x 1 M (NPT)

25 M x 25 M

1.40

0.63

 Straightening Hose
66H-08575 8.5 feet (2.6 m)

3/4 M x 3/4 M (NPT)

19 M x 19 M

4

0.1.8

 Curb Hose
66H-08575-LP 8.5 feet (2.6 m)

3/4 M x 3/4 M (NPT)

19 M x 19 M

4

1.8

 Curb Hose LOW PERMEATION per 3rd Party Approval
