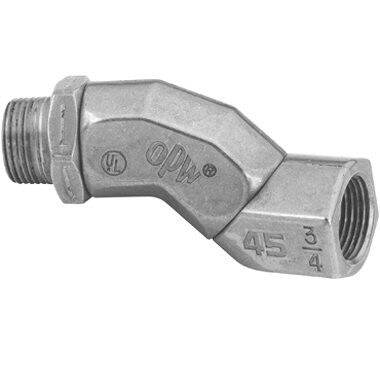

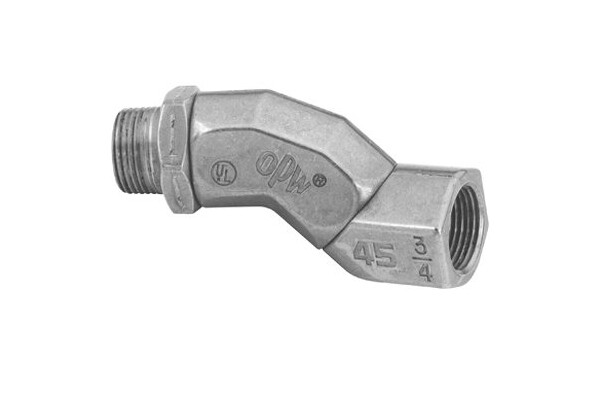

45 Hose Swivel

The OPW 45 swivel is designed for gasoline self-service applications where easy nozzle and hose handling is important for customer convenience. The 45 is installed between the nozzle and hose to reduce strain, providing flexibility so fueling hoses last longer.

Features & Benefits
  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
  • Compact, attractive profile for a sleek, modern appearance.
  • Secure design not repairable or re­buildable for certainty of operation. Every OPW 45 is factory assembled and tested.
  • Better flow performance - less restriction means higher refueling speeds.
  • Unique two planes of rotation for easy nozzle positioning and hose life.
  • 50 psi (3.45 bar) maximum pressure.
Technical Information

Materials

  • Body: Aluminium

  • Outlet Adaptor: Zinc

  • Inlet Adaptor: Zinc

  • Seals: Buna-N

  • Weight: 3/4" - .65 lbs. (.30 kg) each, 1" - 1.16 lbs. (.53 kg) each

Performance

Listings & Certifications

Ordering Information
Item Number

Size

Overall Length

Across Corners

Weight

A

B

lbs.

kg
45-5060

3/4" F x 3/4" M (NPT)

4-1/8"

1-9/16"

0.65

0.3

19 mm x 19 mm

105 mm

40 mm




45-5075

1" F x 1" M (NPT)

4-3/4"

1-7/8"

1.16

0.53

25 mm x 25 mm

121 mm

48 mm





Dimensions
