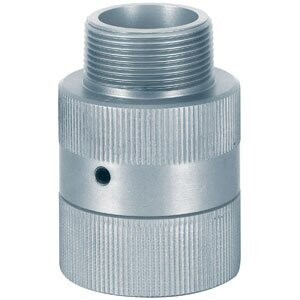

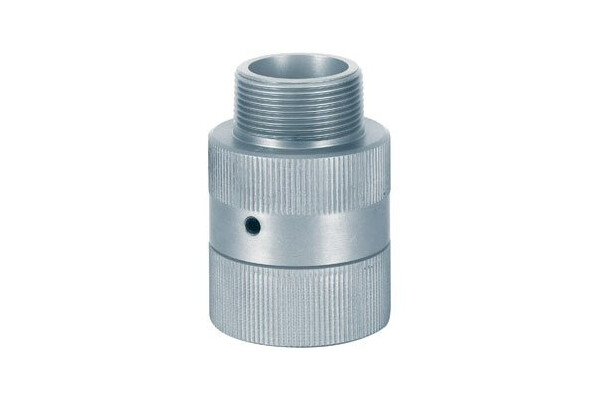

25 Hose Swivel

Designed for use with fuel oil nozzles (at inlet only), the OPW 25 provides 360° swivel action. The full-circle swivel reduces the physical strain of aligning the nozzle with the fillpipe.

Ordering Information
Item Number Size

lbs.

kg

36S-5080 3/4" M x 3/4" F (NPT) (19 mm x 19 mm)

0.30

0.14

36S-5090 1" M x 1" F (NPT) (25 mm x 25 mm)

0.40

0.18

Technical Information

Materials

  • Body: Aluminium
  • Adaptor: Zinc Aluminium
  • Seals: Buna-N O-Ring, Viton® O-Ring
  • Bearings: Nylon

Performance

Listings and Certifications
