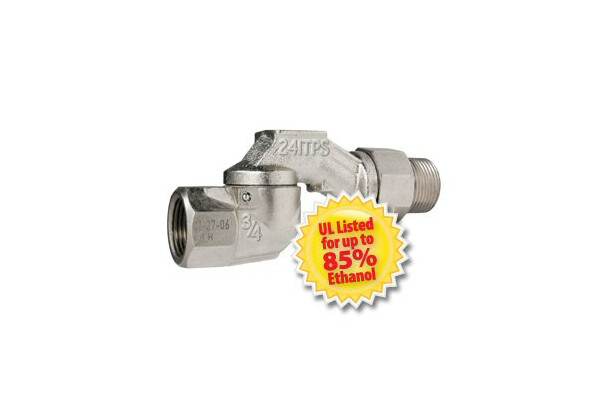

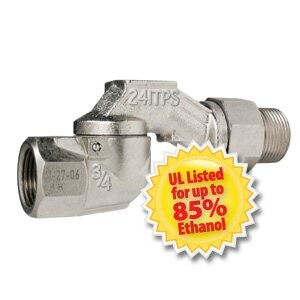

241TPS-0492 Ethanol Swivel

The OPW 241TPS-0492 is designed and rigorously tested for use in today’s alternative fuels. The first swivel of its kind to be UL listed for use in Ethanol blended fuels up to 85%. Swivels are installed in between the nozzle and the hose to provide flexibility in the system to reduce customer strain, position the nozzle properly, and reduce premature hose wear.

Features & Benefits
  • UL Listed for up to 85% ethanol.
  • Allows for easy nozzle positioning in fill pipes – Utilizing two planes of rotation.
  • Reduces premature hose wear – Utilizing two planes of rotation.
  • Added protection vs. thermal and chemical degradation – Dual Seals
Technical Information

Design working pressure
50 PSI (3.45 bar) maximum pressure.

Materials
Body: aluminium w/ nickel plating
Outlet Adaptor: zinc w/ nickel plating
Inlet Adaptor: zinc w/ nickel plating
Seals: Buna-N, Viton®
Bearing: nylon
Weight: 0.65 lbs., 0.30 kg

Performance

Listings & Certifications



Ordering Information
Item

Inlet/Outlet

Length A

Depth B
241TPS-0492

3/4" F x 3/4" M (NPT)

4-7/8"

2-3/16"

19 mm x 19 mm

124 mm

56 mm

Dimensions
