Piusi AdBlue Hose Reel

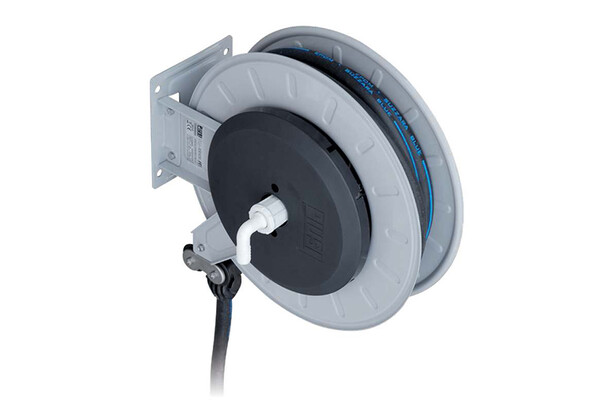

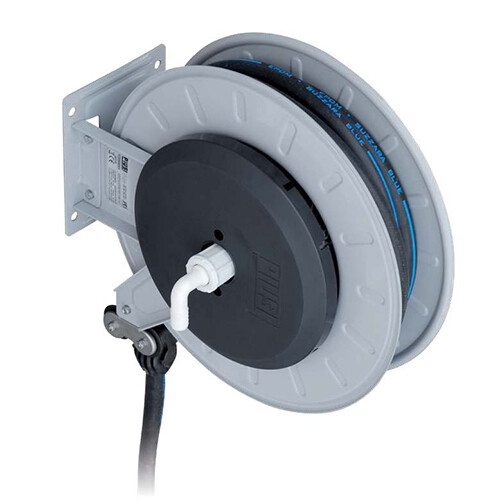

Piusi AdBlue® Dispensing Hose Reel: Spring Rewind.

The PIUSI AdBlue® DISPENSING HOSE REEL is Made in Italy. Featuring a built-in heavy duty spring for spring rewind, it offers years of excellent service. It can be installed on a wall, tank or inside a closed cabinet. It is available both with or without a hose and mounting plates can be added on request.

All the components are compatible with urea in order to avoid parts corrosion.




Features & Benefits
  • Reduced pressure loss
  • Latch mechanism protector
  • Adjustable arms
  • Available with an 3/4 inch BSP 8 or 15 metre hose
  • 10 Bar maximum operating pressure
  • Wall or tank mountable
  • AdBlue safe/resistant dispensing hose (EPDM Rubber)
Ordering Information

To order please call or e-mail Liquip Victoria and quote the associated Piusi Product Code for the specific hose reel you require which is listed on the Datasheet available for download from the resources section.

Technical Information

Inlet: Hose tail 3/4"
Outlet: 3/4" BSP
Dimensions: 460x200x475mm
Spool width: 100mm
Rated to 140psi (10 Bar)
Pressure loss: 14.5psi at 35L/m
Weight: 24kg
BODY: CAST IRON
HUB: POLYPROPYLENE
TUBE: RUBBER (EPDM)

To view product specifications and technical data please download the PDF Datasheet from the resources section.
