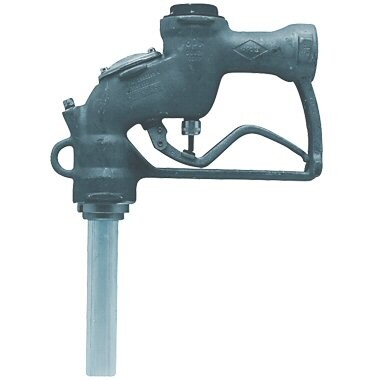

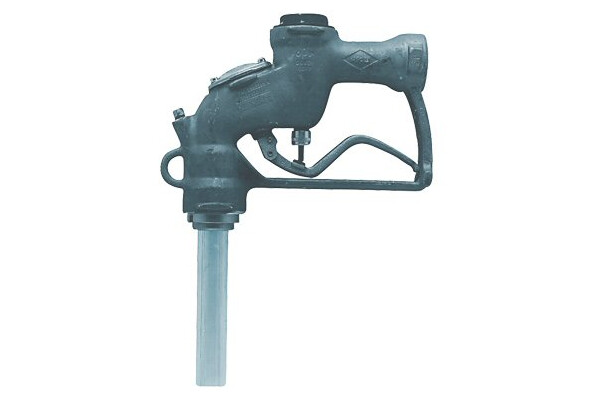

1290 Automatic Shut-Off Nozzles


For Heavy-Duty, High-Flow Truck, Bus and Home Fuel Oil Delivery Service.

FEATURES & BENEFITS

Product Features

  • Venturi-Type Shut-Off Mechanism - for automatic shut-off.
  • Aluminum Body - lighter in weight and easier to maneuver than other nozzles on the market.
  • Two-position hold-open device*.
  • One-Hand Control of Hold-Open Mechanism - means easy setting of flow rate.
  • Right Angle Design - provides larger lever area for better grips and easier control, permitting the nozzle to fit into awkward spaces close to walls and into corners.
  • Easily-Replaced Spout - simply remove the spout retainer nut.
  • Built-In Outlet Check Valve - meets all known requirements of the Division of Measurement Standards.
  • Dual Poppets - make nozzle easy to open against high inlet pressure.

Materials

  • Body: Aluminum
  • Main stem: Stainless steel
  • Packing: Graphite with Teflon®
  • Main Disc: Viton®
  • Inlet Size: 1-1/2" NPT
ORDERING INFORMATION

Please contact the sales team at Liquip Victoria for all ordering and extra product information.

TECHNICAL INFORMATION

Design working pressure

  • 50 psi (3.45 bar) maximum pressure.
  • Service Temperature range: -20º F to 140º F

Listings and Certifications



*1291C-0050 ONLY *1291C Nozzles are not permitted and sold with Hold-Open Clips per ULC S620 requirements.



Performance







Please CLICK HERE for more technical information.
