HOST Farm Tanks

On-farm diesel storage and dispensing now can be achieved more safely and cost-effectively.

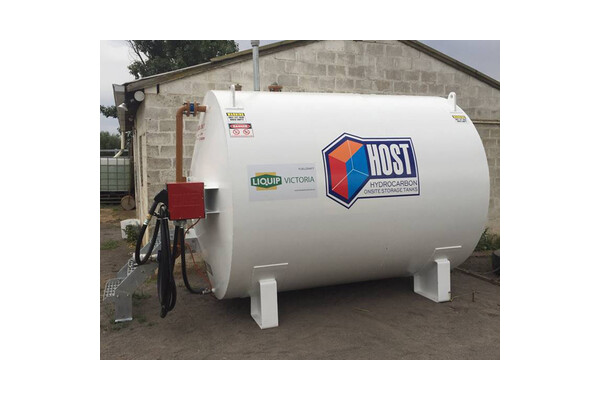

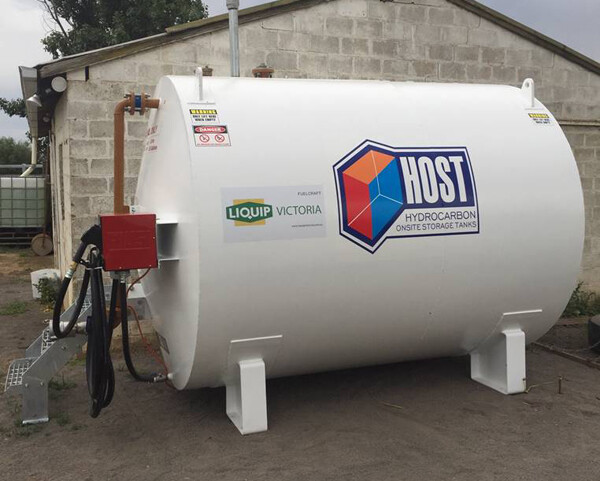

The HOST round Farm Tanks are designed for easy bulk or nozzle filling and set up to mount a variety of dispensing pump solutions. They provide a safe environment, removing the need to climb up ladders or unsafe stairs found on gravity fed tanks. Offering low maintenance and installation costs these tanks come in three sizes:

► T4.5 – 4,500L   ► T9  – 8,500L    ► T18  – 17,500 L

Dispensing is simple with a large range of custom fitted and complete turn key pump solutions  in 12V, 240V or Solar available, making them an ideal stand alone fuelling system.

Talk to us today about the right tank for you.

We also have a range of Self Bunded Tanks, ideally suited to users looking to store and dispense volumes of liquid.

Features & Benefits
Standard Single Wall Farm Tank Features

• Solid and durable round single wall tank, designed to handle Australian conditions
• Safe Fill Levels: 4,500 litres, 8,500 litres and 17,500 litres
• Paint finish – White, two pack epoxy marine grade
• Fast fill 80 mm connection or nozzle fill position option
• Sturdy galvanised stairs to access dip point (no ladder required)
• Calibrated dip sticks
• Galvanised Vent Pipe with Updraft Vent
• Various port openings on tank top for gauging or other uses
• Lifting points on tank for easy manoeuvrability
• Warning decals for combustible application
• Great under tank visibility for inspections
• Heavy duty support legs with cradle strap, ready to fasten to concrete pad
• Pump package options available (Installed or in kit form).

Technical Information & Sizing

HOST Farm Tank Sizes and specifications

Ordering Information

Please use the tank 'T' title for ordering:

► T4.5 – 4,500L

► T9  – 8,500L

► T18  – 17,500 L

Associated Equipment

Pumps, Meters and Fuel Management Systems

STANDARD DISPENSING SYSTEMS
> Solar Pumping Off Grid (8 m Auto Nozzle) – up to 80 L/pm
> Mains Power with Mechanical Meter – up to 100 L/pm
> Fuel Management System – up to 80 L/pm

CUSTOM DISPENSING SYSTEMS
> View our range Transfer Pumps, Flow Meters and FMS ranges and request a custom designed dispensing system to be fitted to your HOST Farm Tank of choice.
