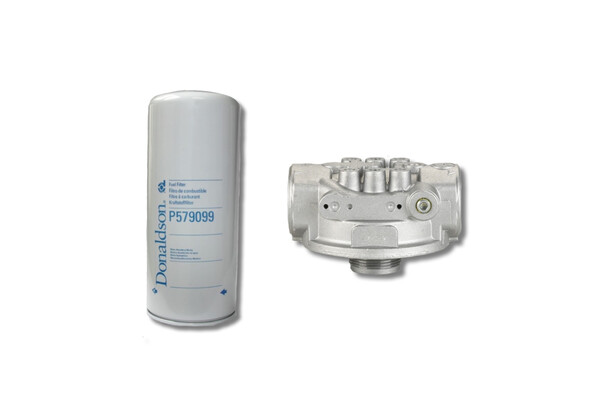

Donaldson Fuel Filter & Head Assembly
Why Choose Donaldson Hydraulic Heads
A variety of low, medium and high-pressure filter heads available for a wide range of applications.
Choose between optional features for a customized heads that best fits the needs of your specific application.
A variety of inlet & outlet port configurations are available to meet your exact requirements.
| Length | 131.4mm (5.17 inch) |
| Height | 83.5mm (3.29 inch) |
| Inlet Size | 1 1/4 BSP/G |
Donaldson Fuel Filter – P579009
| Efficiency Beta 200 | 10 Micron |
| Outer Diameter | 118.3 mm (4.66”) |
| Thread Size | 1 1/4 BSP/G |
| Length | 286mm (11.26”) |
| Gasket OD | 110mm (4.33”) |
| Gasket ID | 98mm (3.86”) |
| Media Type | Synthetic, Water absorbent |
Packed Dimensions
| Packed Length | 125.73mm (4.95”) |
| Packed Width | 125.73mm (4.94”) |
| Packed Height | 2970.78mm (116.96”) |
| Packed Weight | 1.41kg (3.11 lb) |
| Packed Volume | 4813.864cm3 (0.17ft3) |
