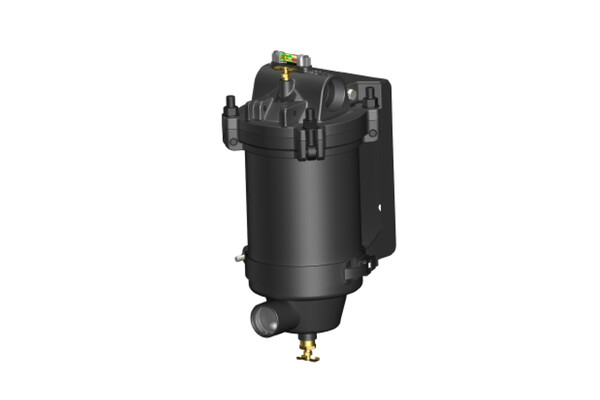

Facet Multi Purpose Filter Housing

The Facet VF-21SB & VF-22SB are versatile, compact, economical, light weight housings for superior in-line filtration protection. These housings utilize the same elements as previous Series 21 & 22 housings, but offer the benefit of a quick open swing bolt type close along with a new optional mounting bracket for installation.
Depending on the type of cartridge selected, the housing may be used as a filter, absorptive filter, filter separator or air/gas  entrainment separator to remove solids, water, mist or hydrocarbon carryover.


CAUTION: FULL FLOW MONITORS ARE NOT FOR USE IN FUEL CONTAINING ANTI-ICING ADDITIVE (FSII, PRIST, DI-EGME). THIS INCLUDES PRE-MIXED AND MILITARY FUELS CONTAINING THIS ADDITIVE.

Learn More here

Standard Housing Design

-Carbon steel body
-Aluminum head
-Epoxy coated internally and externally
-150 psi (10.5 kg/cm2) design pressure
-Swing bolt quick open closure
-Buna-N o-ring closure gasket
-Vent and drain connections w/brass petcocks provided
-1-1/2” NPT inlet and outlet connections

Common Applications

-Jet Fuel
-Avgas
-Gasoline
-Diesel
-Bio-Diesel
-Lube Oil
-Insulating Oil
-Hydraulic Oil
-Transformer Oil
-Solvents
-Compressed Air
-LNG
